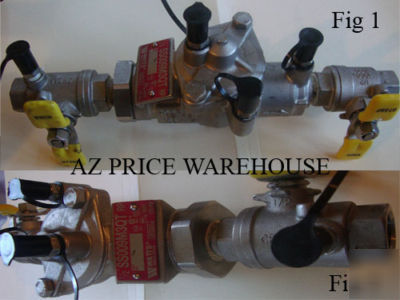

Watts series SS009M3QT stainless steel reduced pressure

Reduced pressure Zone Assembly 1/2''
This item has been pulled from a working enviroment and looks in great conditions. regular price for this are $1,170.00 with AZ Price warehouse for less
Watts Series SS009M3QT Stainless Steel Reduced Pressure Zone Assembly, 1/2" (0062967)
The Watts Series SS009 Stainless Steel Reduced Pressure Zone Assembly prevents the reverse flow of polluted water from entering into the potable water supply due to back siphonage and or back pressure. It consists of a stainless steel body construction, two stainless steel check valves, stainless steel check seats, hydraulically-operated relief valve, and stainless steel, vandal-resistant ball valve test cocks. Series SS009 is ideal in applications where the downstream liquid is of a composition where bronze material would be damaged or if it is desirable to eliminate trace elements of lead and copper. Series SS009 is ideal in industrial or plant applications, in medical/diagnostic equipment, reverse osmosis systems, and other health hazard piping systems. Check with local water authorities for installation requirements. Maximum Working Pressure: 175psi (12.06 bar)
Watts Series SS009M3QT Stainless Steel Reduced Pressure Zone Assembly, 1/2" (0062967) Features:
1/2" female iron pipe inlet and outlet connections
Cast 316 Stainless Steel Assembly
All wetted valve components - test cocks, ball valve
shutoffs, pipe nipples, body and cover, check modules and relief
valve assembly are made from "Lead Free" Stainless Steel or
Bolted on, top entry single access cover for ease
Modular check construction featuring nonreversible checks with
captured springs for simplified servicing.
Top mounted vandal resistant EZ-TC test cocks provide easy
Stainless Steel EZ-TC test cocks include dust covers to protect
the threads from dirt, dust and insects.
EZ-TC Test cocks eliminate the need for tools and test fittings.
True line sized check modules open further allowing dirt and debris to
pass freely through the valve reducing fouling problems.
Check and Relief Valve Seats are replaceable without the use of
Internal relief valve for right and left hand installations.
