> Tektronix DPO3034 300 mhz 2.5 gs/s dpo incomplete
Tektronix DPO3034 300 mhz 2.5 gs/s dpo incomplete

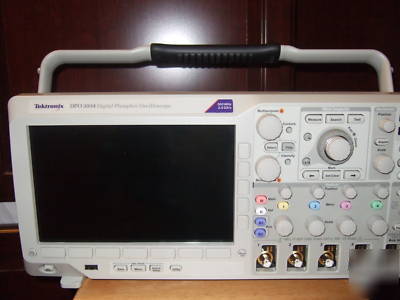

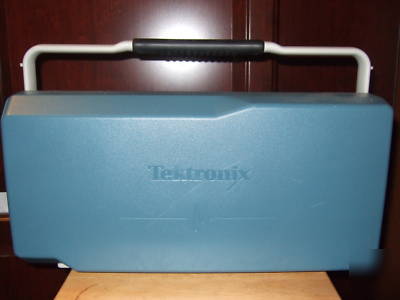

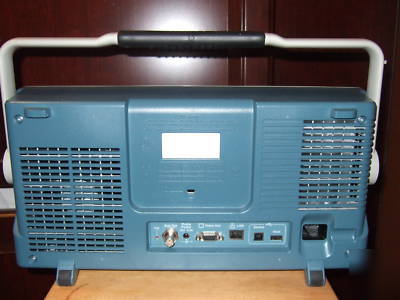

Up for sale is a Tektronix DPO3034 Digital Phosphor Oscilloscope that is without the power supply or main board.
* 4 channel attenuator board
* Front Panel and Front Panel Board
* IO Board with all connections intact
* LCD that appears to be in excellent condition
* Front Cover/Accessories tray
Calculated Rise Time 5mV / div (typical)
Provides integrated digital and bus views, bus decoding, and serial triggering and search based on packet content for the most popular serial standards: I2C, SPI, CAN, LIN, FlexRay, RS232/422/485/UART.
I2C and SPI support is provided with the DPOxEMBD application module.
CAN and LIN support is provided with the DPOxAUTO application module.
FlexRay, CAN, and LIN support is provided with the DPO4AUTOMAX*2 application module.
RS232/422/485/UART support is provided with the DPOxCOMP application module.
Power Source Voltage 85 to 265 V 10%.
Power Source Frequency 45 to 440 Hz (85 to 265 V).
Power Consumption 120 W maximum.
Arithmetic Add, subtract, multiply and divide waveforms.
Math Functions Integrate, Differentiate, FFT.
FFT Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS and FFT Window to Rectangular, Hamming, Hanning, or Blackman-Harris.
Advanced Math Define extensive algebraic expressions including waveforms, math functions, scalars, up to two user-adjustable variables and results of parametric measurements e.g.,(Intg(Ch1-Mean(Ch1)) x 1.414 x VAR1).
Cursors Waveform and Screen.
Automatic Measurements 29, of which up to four can be displayed on screen at any one time.
Measurements include: Period, Frequency, Delay, Rise Time, Fall Time, Positive Duty Cycle, Negative Duty Cycle, Positive Pulse Width, Negative Pulse Width, Burst Width, Phase, Positive Overshoot, Negative Overshoot, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS, Rising Edge Count, Falling Edge Count, Positive Pulse Count, Negative Pulse Count, Area and Cycle Area.
Measurement Statistics Mean, Min, Max, Standard Deviation.
Reference Levels User-definable reference levels for automatic measurements can be specified in either percent or units.
Gating Isolate the specific occurrence within an acquisition to take measurements on, using either the screen, or waveform cursors. Measurements use full record by default.
