Lucent ts-956C 1550NM optical fiber identifier kit
Lucent TS-956C 1550nm Optical Fiber Identifier Kit Used
Model/Part No:TS956C Our Item ID: 3451

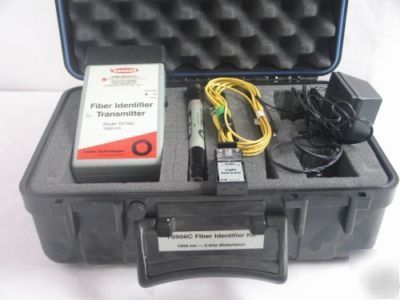

Item sold as pictured with accessories.
Lucent Fiber Identifier 1550nm Kit TS956C - 1550nm
The TS956C Fiber Identifier Kit contains the TS756C Fiber Identifier Transmitter, the TS856C Fiber Identifier Receiver, one ST II to ST II jumper, one ST II to Keyed Biconic jumper, and one Macrobend Fixture all packaged in a waterproof hardside carrying case. This kit provides everything needed to identify fibers in a multi-fiber cable. This kit uses a 1550 nm laser to launch a 2-KHz modulated signal into one end of an optical fiber. The included receiver indicates 2-KHz signal detection by emitting a tone from a buzzer while lighting a green LED. The included Macrobend Fixture allows signal detection without access to the end of the optical fiber.
Output Power: -9 dBm to -5 dBm (-6 dBm typical at 25 C)
Wavelength: 1550 20 nm Fabry Perot Laser Diode
Modulation: 2 KHz and 2 KHz pulsed at 1 Hz
Operating Temperature: -20 C to +50 C
Storage Temperature -40 C to +60 C
Dimensions: 3.7 W x 7.3 D x 1.5 H (9.4 cm x 18.5 cm x 3.8 cm)
Battery: 4 AA Cells (Lithium or Alkaline)
Battery Operation Life: >200 Hours (Lithium at 20 C)
Battery Shelf Life: 10 Years (Lithium)
AC: 120V @ 60 Hz Adapter included
Operating Temperature:-20 C to +50 C
Storage Temperature: -40 C to +60 C
Dimensions: 7.8 L x 0.7 OD (19.8 cm x 1.78 cm)
Battery: One AA Cell (Lithium or Alkaline)
Battery Operation Life: >200 Hours @ 10% duty (Lithium) >500 Hours Standby (Lithium)
Item Tested?: Tested GoodPhysical Condition: Very Good; Working Condition: Fully Functional4 | 14x 14x14 | 1
