Hp 4193A vector impedance meter with probe kit

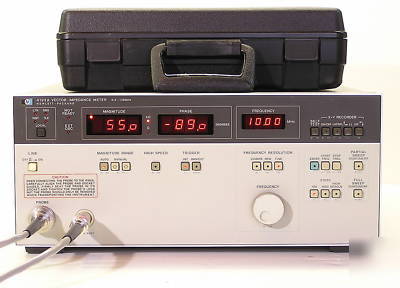

HP 4193a Vector Impedance Meter with Probe Kit
The 4193a measures impedance Magnitude and Phase
Three 3-1/2 digit displays for Magnitude, Phase, and Frequency
5 impedance ranges: 10 ohm, 100 ohm, 1 kohm, 10 kohm, 100 kohm
400 kHz to 110.0 MHz variable measuring frequency,
with a maximum resolution of 1 kHz.
Spot measurement, or swept frequency measurements.

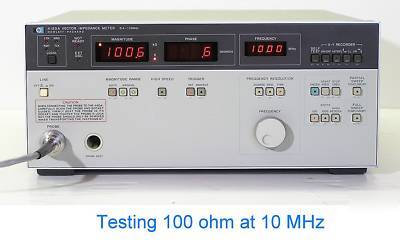

Shown testing a 100 ohm HP 16345a probe calibration standard at 10 MHz (16345a not included)

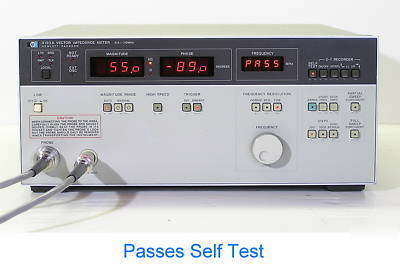

I have checked this unit with using the various probe test values and test
frequencies and have gotten accurate results.
I have checked the test frequency at several points and it was correct.
I have sent the instrument several commands and took some readings over the HPIB and it responded correctly.
No other tests were performed on this instrument.
This unit is good cosmetically, with some scratches and dings on the front and on the case.

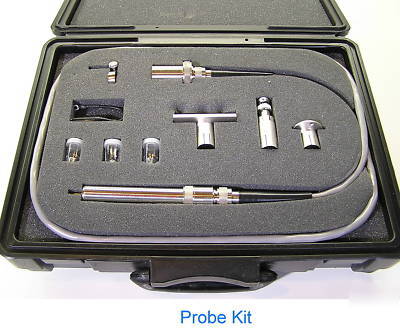

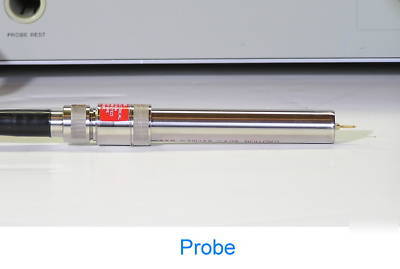

Comes with Probe Kit, CD with copy of operation & service manuals (PDF), and power cord.
