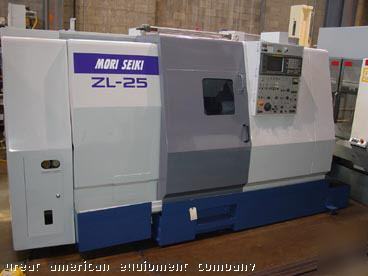

New mori seiki zl-25 4-axis cnc lathe, 1996
Please see info below and photos on a very nice Mori Seiki ZL-25 4-Axis CNC Lathe. This machine has (2) simultaneous turrets. It is under power in Cincinnati, OH and is available to show to you immediately. This machine will make someone an excellent machine. PLEASE NOTE THIS MACHINE DOES NOT HAVE A CHUCK OR A DRAWTUBE. This machine is available immediately. I do have the ability to load this machine on your truck. I can shop and get you a freight rate if you want me to. Please call Paul Trossman at (***)-771-2111 w/ any questions or please email me at ****@hotmail.com. I do have one additional identical machine available if you are looking for two machines.
MORI SEIKI ZL-25/500 DUAL TURRET CNC TURNING CENTER
EQUIPPED WITH: Mori Seiki MF-D6 CNC Control w/ CRT, Tailstock, Dual Turrets, Chip Conveyor, Coolant System.
Max Swing Over Bed..................................... 20.47"
Max Swing Over Cross Slide............................. 13.78"
Maximum Turning Diameter............................... 10.24"
Maximum Turning Length................................. 20.87"
Standard Chuck Size.................................... 10"
Cross Travel Turret 1 (X1-Axis)........................ 6.3"
Longitudinal Travel Turret 1 (Z1-Axis)................. 23.23"
Cross Travel Turret 2 (X2-Axis)........................ 6.3"
Longitudinal Travel Turret 2 (Z2-Axis)................. 23.23"
Rapid Traverse Rate (X1, X2 Axes)...................... 472 IPM
Rapid Traverse Rate (Z1, Z2 Axes)...................... 590 IPM
Number of Turrets...................................... 2
Tool Positions Turret 1................................ 10
Tool Positions Turret 2................................ 8
Spindle Bore........................................... 3.15"
Spindle Nose........................................... A2-6
Spindle Speed Range.................................... 35-3500 RPM
Spindle Horsepower..................................... 25 HP
Approximate Machine Dimensions......................... 182" x 72"
Approximate Machine Height............................. 80"
Approximate Machine Weight............................. 15,840 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
