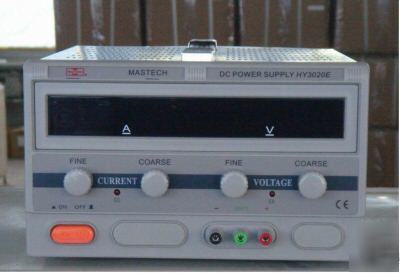

Mastech variable regulated dc p. s(HY3020E) 0-30V/0-20A
* Input voltage: 110V AC or 220V AC
* Two level of control for both current and voltage outputs: coarse and fine
* Line regulation: CV <= 0.02% + 3 mV, CC <= 0.5% + 3 mA
* Load Regulation: CV <= 0.02% + 10mV, CC <= 0.5% + 10 mA
* Ripple noise: CV <= 10 mV RMS, CC <= 10 mA RMS
* Protection: constant current and short-circuit protection
* LED reading accuracy: +/-1% for voltage and +/-2% for current
* Environment: 0-40C, relative humidity < 90%
