ICM203 42-ICM203 adjustable time delay on break relay

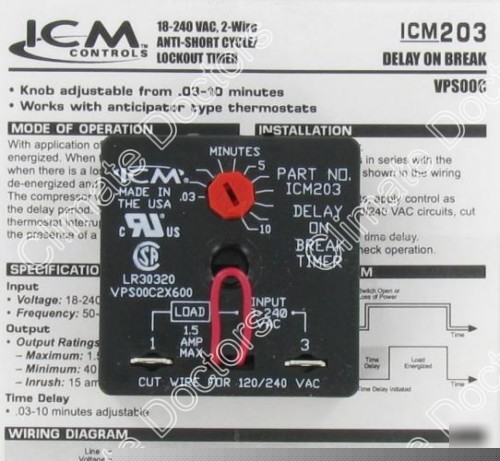

ICM203 42-ICM203 Adjustable Time Delay On Break Relay
The ICM203 Delay on Break Timer features an improved 1.5 amp power rating plus a newly designed package which includes a unique spin-proof knob.
* Adjustable time delays: .03-10 minutes
* Works with anticipator type thermostats
* One model replaces many in the field
Power Consumption: 2 watts max. during timing
Ratings: max. 1.5 amp, min. 40mA, inrush 15 amp
Voltage Drop: 4.5V max. @ 1.5 amps
Leakage Current: 5 mA max. @ 240V
