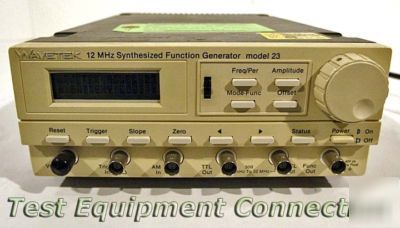

Wavetek 23 /1/4/ synthesized function gen- parts/repair
* Programmable Waveforms: Sine, triangle, square, and dc (1 kHz-12MHz)
* Operational Modes: Continuous, trigger, gate, clock, continuous synthesized
* Frequency Range: 10 MHz to 12 MHz
* Mode Lock Time: less than 30 ms
* Repeatability (24 hr.): 0.0003% in synthesized mode
* Amplitude Range: 0.01 to 10.2 Vp-p
* DC Offset Range: DR or offset programmable from -5.1V to +5.1V
* Peak Output Current: 100 mA
* ECL Source Impedance: 50 Winto -2V
* Signal Bandwidth: 100 kHz maximum
