Pressco intellispec automated vision system
System was used in manufacturing of glass containers and is less than 2 years old. Former owner had to close their plant, which is why it is now for sale.

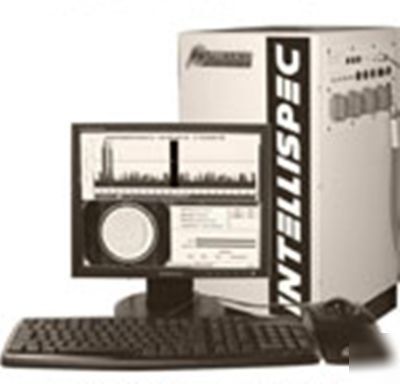

Based on an adaptable, modular design, the central INTELLISPEC processor can manage up to 8 high-speed cameras spread across multiple lanes. Each inspection module is designed to withstand the rugged environment of a manufacturing facility, thus ensuring years of reliable, trouble-free operation. The lighting and optical components are optimized to provide maximum performance for the desired inspection, and additional modules can be purchased as inspection needs grow and change.
PRESSCO DIGITAL INTELLISCPEC AUTOMATED MACHINE VISION SYSTEM FOR ON-LINE INSPECTION OF THE INSIDE OF TWO PIECE BEVERAGE CANS
-42 high X 24 deep X 24 wide floor mount enclosure
-Embedded Windows XP vision processor structure and accompany hard disk, main memory, DVD-R/W, CD ROM, and floppy disk drive
-Chromapulse SmartLight multi-spectral light control system
-Multi channel video acquisition circuit module
-Multi channel part tracking and rejection circuit module
INSIDE OF BEVERAGE CANS INSPECTION MODULE
-(3) high resolution digital video cameras
-Custom fabricated inspection module
-(2) Quick disconnect industrial umbilical cable assembly
-Complete proprietary software package for inside of can inspection
-Windows XP operating system license
-Interconnect kit for interfacing
XC20 CONTOUR MEASURING STATION
Package for the assessment of all normal contour measurements of angles, radii, distances, normal profiles, and more. Includes the following:
-CD120/PCV Mount Device for ST500
-ST 500 Measuring Stand Including Granite Base
-Stylus for Bore Diameter Larger than 7mm
