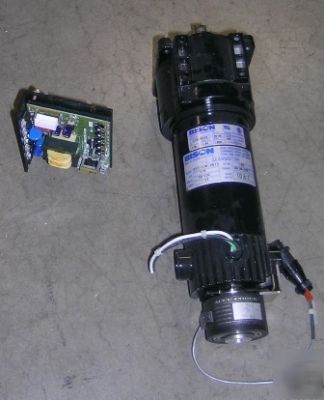

Bison 300 parallel shft ipec 373 m gear mtrs & driver
http:// /misc/270.jpg
* Minarik Driver - Model PCM21000A
Manufacture Specs: MINARIK DRIVER MODEL PCM21000A Retail Price $183.00
* Isolated inputs: Accepts floating or grounded signals of 0-10VDC or 4-20mA. 3% linearity through 50:1 speed range. 1% linearity through 30:1 speed range.
* Speed range and regulation: 1-2% regulation over 50:1 speed range.
* User adjustable calibration pots: IR compensation, min speed, max speed, current limit and signal input adjust (for external signal input only).
* Diagnostic LEDs: LEDs for power,current limit and external signal status.
* Stopping modes: In manual mode only: decelerate to zero speed (N.O.) or add dynamic braking resistor and switch.
* Spade terminals: Easy to use, lower cost and able to fit in a smaller package.
* Additional features: Manual or signal mode jumper select. 0-10V or 4-20mA signal jumper select.
Items are used and in good physical and working condition.
