Bancroft weldaround 500 cnc rotary mig miller welder

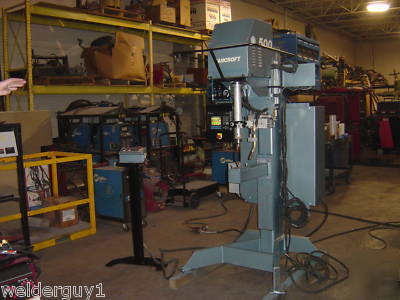

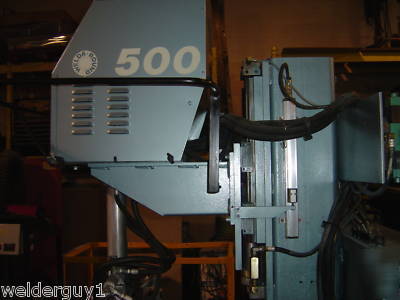

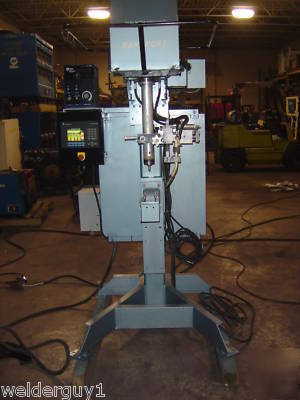

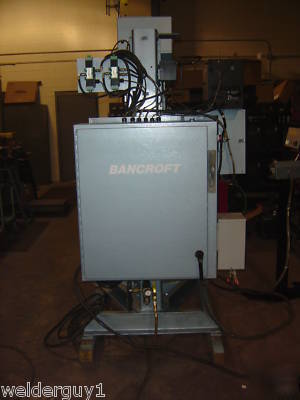

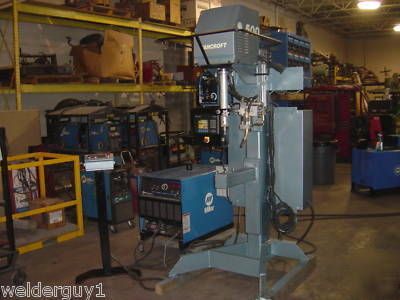

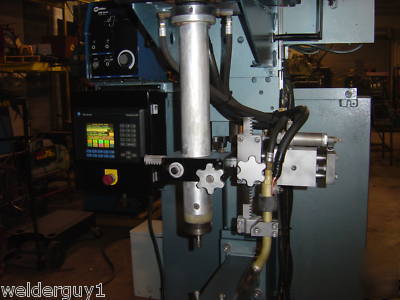

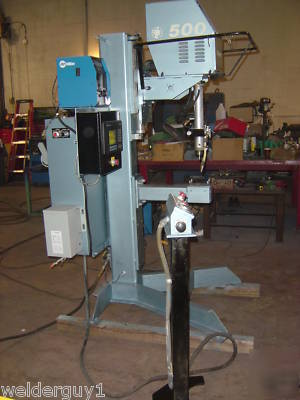

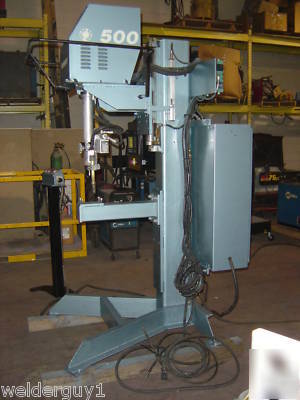

BANCROFT WELDAROUND 500 ROTARY CNC MIG WELDING SYSTEM
The MODEL 500 is the unit of choice for your applications that require extreme machine rigidity and accuracy. The MODEL 500 bridges the gap between the MODEL 300 and the large, dual torch MODEL 600.
Manufactured for Duffy Tool and Stamping in 2003. Machine has had very light use and has been reconditioned and tested. Excellent working condition!
* Programmable logic controls
* Adjustable operator console
* 150 pound head clamping force
* Adjustable 8-inch vertical stroke
* Four-roll wire drive system
* Integral wire drive 50-550 IPM
* Rack and pinion torch adjuster
* 500 amp rotary ground at 70 percent duty cycle
* 0.7 to 14 RPM rotation speed
* Rise and fall contour assembly (option available from bancroft)
* Pneumatic radial adjustable torch-slide

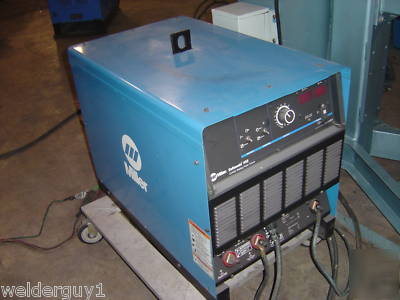

* Miller Deltaweld 452 MIG Welding Power Source (230/460/575V 3-Phase Input; 450A Output; Serial KG124772)

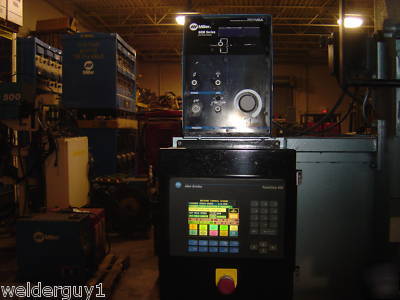

* Miller 60M Wire Feed Control

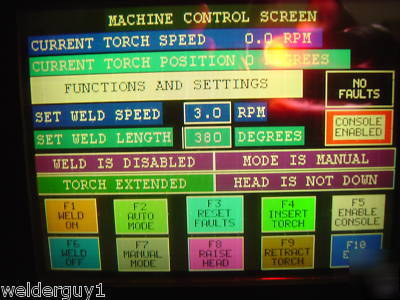

* Allen Bradley PanelView 600 Digital Color Automation Terminal (allows operator to program for custom welding rotary welding applications)
* Remote Operator Control (on/off; execute weld program)
* Full Operator's Manual, Wiring Diagrams, etc.
