Stainless steel flange set vacuum meter 4 tube furnace

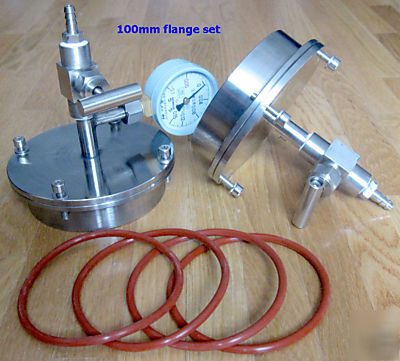

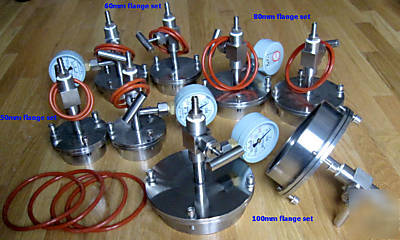

This list is for a pair of brand new smart sealing assembly for vacuum tube furnaces to tighten both sides of their OD 50mm tubes without any welding and gluing. Warning: A refractory tube block must be placed in front of flange (see picture above) to avoid heat damage to the silicon O-rings.
* Made of stainless steel with double high temperature silicone sealing O-rings (300oC Max) on each flange
* One flange has a vacuum meter with valve, and the other with one valve
* Seal tube by tighten screws on the flanges without any welding and gluing
* Connect to 1/4" inch vacuum rubber hose
* Excellent for any type of tubes: ceramic, glass, quartz, steel etc.
* O-rings specs: ID 46mm, W 5mm
* One flange with vacuum meter and valve
* Four high temperature silicone O-rings
One year standard warranty from the date of purchase.
