Pcs 20 watt broadcast fm transmitter

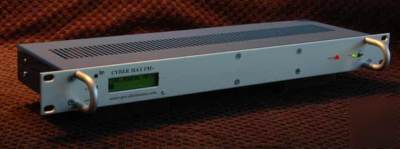

SPECIAL - 20 Watt FM TRANSMITTER/EXCITER
BRAND NEW SPECIAL PROMOTION - VERY LIMITED QUANTITY
BRAND NEW 20 WATT FM TRANSMITTER/EXCITER
V2 is out! CYBER MAX FM+ 20W now contains our new enhanced FM exciter features direct power readout and a wide range of other functions. CYBER MAX FM+ 20W is the smallest from our line of our rack mounted FM transmitter series for demanding broadcasters, operating in the whole band II, from 87.5 to 108 MHz. Transmitter consists of an advanced FM exciter (MAX PRO 3000+ series) and a number of optional stereo encoder choices, exciter include pre-emphasis circuit, active low-pass filter, limiter. Advanced FM exciter guarantees 15W of clean signal. No tuning is necessary, design is entirely wideband. All you have to do is set the frequency. SWR, temperature and polarity protection make it very difficult to destroy the unit. Unit is housed in a brand-new professional 19" rack, new design is lighter and RF tight (does not leak RF). It is rugged and made for 24/7/365 operation. Each unit has a wide-angle high contrast backlit LCD display. For a list of improvements in version 2 look below. This unit can give up to 20W of clean RF power, but this is not recommended for long term operation (13-15W is recommended for long life) .
- New 19" Rack Mount 1U Enclosure
- Shows output power on LCD in watts
- Shows reflected power on LCD in watts
- Fan powers down at low power output
- Unit operates and PLL locks across the entire band even at 11V
- Smallest PLL step 10KHz (25/50/100/200KHz can be selected)
- Output power: 12-15W typ (up to 20W max.), adjustable from 0 to max via LCD or internal trimmer if you prefer
- Audio input connectors: RCA (cinch) and XLR (DSP version only)
- Power supply: DC 12-15V/2.5A or mains
- Standard 19" 1U rack, 13cm deep (about 5")
