10,000' 1/2" radiant heat/O2 barrier pex

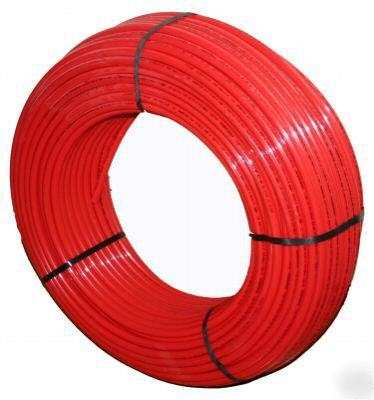

1/2" PEX RADIANT HEAT TUBING WITH OXYGEN BARRIER
Questions? Call available discounts and multiple purchases.
This listing is for boxed, brand new, fresh production of 10,000ft (Tenthousand feet) 1/2" cross-linked Polyethylene (PEX) with Oxygen Barrier.
Contact us for other quotes in length or size requirements or if you need without O2 barrier. We carry 3/8", 1/2", 5/8", 3/4, and 1" ID with and without O2 barrier.
Feel free to contact for brochure.
* PEX Radiant tubing can be used in concrete slabs, under floor, under raised floor, outdoor concrete slabs or ground to melt ice or snow, and solar heating through the building.
* The Radiant tubing can also be used for PEX for potable water since it has all the certifications
* Compatible with all fittings such as pressure fittings, crimp fittings, and even Wirsbo fittings that are ASTM/NSF/CSA.
* Although the PEX has UV resistance, PEX should not be placed in the sun or have UV exposure.
This PEX will fit all ASTM/NSF/CSA fittings. If you get a kink, you can remove kinks with heat. Can take pressure and return to the original shape. Same goes with freezing. If water freezes, the PEX is designed to expand without bursting and return to original shape when it thaws. This is the greatness of cross-linked polyethylene.
* 1/2" inch inside diameter in accordance to SDR9
* SDR9 1/2" Dimensions: .625" OD, .485" ID, .50" Working
* Oxygen barrier is encased with the walls of the pipe, protecting the layer from physical or ultraviolet light damage. This protected layer renders the pipe virtually resistant to gasses getting into the line.
* All tubing is marked every 2 feet so there is no measuring or guessing in the length. The marks are designated in FTXXX where XXX is the foot number of the spool. Example. If you need 300ft of a 900ft spool, you start at beginning and make cut at FT300.
* Good flexibility with comfortable 6 inch bend diameter. Can go a little smaller without kinking. See Picture.
Pipe has been developed, tested and approved for central, solar, and under the floor heating systems and also for hot and cold potable water service to the following standards which are all marked on the tubing. As required by codes, all certifications are labeled on the PEX.
American Society of Testing Materials.
ASTM F876 - Standard Specification for Crosslinked Polyethylene (PEX) Tubing
ASTM F877 - Standard Specification for Crosslinked Polyethylene (PEX) Plastic Hot- and Cold-Water Distribution Systems
CSA B137.5 - Canadian Standards Association for Cross-Linked Polyethylene (PEX) Tubing Systems for Pressure Applications
Gives requirements for crosslinked polyethylene pressure tubing systems. Components that are covered in this standard are meant for use in residential and commercial hot and cold potable water distribution systems, also sealed central-heating (including under-floor) systems.
NSF 61- Drinking Water System Components Health Effects
This Standard is intended to cover specific materials or products that come into contact with: drinking water, drinking water treatment chemicals, or both. The focus of the Standard is evaluation of contaminants or impurities imparted indirectly to drinking water.
NSF 14 - Plastic Piping System Components and Related Materials
The physical, performance, and health effects requirements in this Standard apply to thermoplastic and thermoset plastic piping system components, including but not limited to pipes, fittings, valves, joining materials, gaskets, and appurtenances. The established physical, performance, and health effects requirements also apply to materials (resin or blended compounds) and ingredients used to manufacture plastic piping system components. It provides definitions and requirements for materials, ingredients, products, quality assurance, marking, and record keeping
IAPMO - International Association of Plumbing & Mechanical Officials
ICBO - International Conference of Building Officials
25 YEAR warranty. Don't be fooled by the other longer warranties from top brands where the installer has to be trained by their company to get their warranties. Warranty information will come with the product or be emailed to you.
We are able to handle any volume order over 10,000ft. Contact us for more information and large volume discounts.
All rolls are fresh production and protected.
