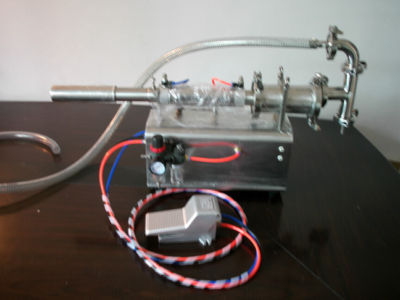

One head 500ML depositor piston filler filling machine
* Easy adjusting fill volume control. when you start to filling, you can screw in or out the handle stem of volume assembly in order to confirm the filling amount what you have selected prior. The filling volume will be controlled by handle stem without tools and no need to exchange any parts, if you need change the filling volume.
* Cylinder size:72mm bore diameter 125mm stroke length ,stroke stop adjustable from 10 to 125mm;
* Air cylinder size: 50mm 125mm;
* Adjust Dispensing volumes: 50ml-500ml/one dose;
* Nozzle inner diameter size: 8mm
* Overall :850mm 265mm 460mm (Length Depth Height)
Thank you for your visiting! Thank you for your visiting! Thank you for your visiting!
* US $390.00 fee is charged for all RMA return;
1. Additional filling nozzle costs US $32.00, 6mm, 8mm,10mm, and 12mm are available.
* The diameter of the nozzle should be correctly selected to provide a smooth flow. When the nozzle diameter matches the surface tension of the product, a film or bubble is naturally formed in the tip of the nozzle at the end of each fill. This keeps any material left in the nozzle from dripping out. If the nozzle diameter is too large, the film can not form and there may be a few drips at the end of each fill.
Thank you for your visiting!
* Proper to fill the products with suspended solid, seed and chuck;
* Take apart and assembly the positive cut- off valves without any tools;
