Parker 110-1N linear servo motor+magnet track rail set
Parker 110-1N Linear Servo Motor+Magnet Track Rail Set

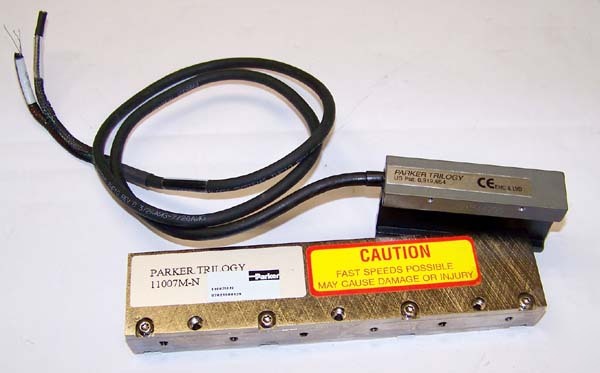

This is a Used Parker 110-1N Linear Servo Motor and Magnet R-Axis Linear Rail-110-1N-NC-WD3S-8/11007M-N. This item offers high forces and rapid accelerations in a compact package. It features the I-Force patented I-beam shape and with its overlapping windings allows for a higher power density in a smaller motor, improved heat removal, and added structural stiffness. The item was pulled from a working environment but we have no way of testing it. Cosmetically, the item is in excellent condition minimal wear. The photos show a typical item. Only what is shown in the photos is included.
* Ironless motor, patented, RE34674
* Cross-section: 2.05 H (50mm) x 0.82 W (21mm)
* Peak forces in two sizes to 45lbs (200N), continuous forces to 10lbs (44N)
* Precision ground 3-piece track (110 model)
* Two lengths of modular magnet tracks allow unlimited length of travel
* Single-piece magnet tracks to 36 length
* Pre-aligned embedded digital Hall effect devices
* Internal thermal cutout switch protects coil
* Peak Force: N 108.5, lb 24.4
* Continuous Force: N 24.5, lb 5.5
