New atc 365A long ranger timer 365A300Q30PX * *
ATC 365A Long Ranger Timer 365A300Q30PX *NEW*
The 365 is a digital, microprocessor based, indicating reset timer with on-delay start. Two DPDT relays provide instantaneous and delayed outputs while combinations of the two will give interval or pulse mode operation. Time is derived from power line frequency (50 or 60 Hz) and reset occurs when power is interrupted to the unit.
The set point can be any three digit value between 0.01 and 999, in second, minutes or hours. The timer provides a self-test procedure and any one of four different, easily-programmable modes of cycle progress display.
The 365 plugs into the standard ATC DIN sized housing, and without wiring change can retrofit a model 355 timer.

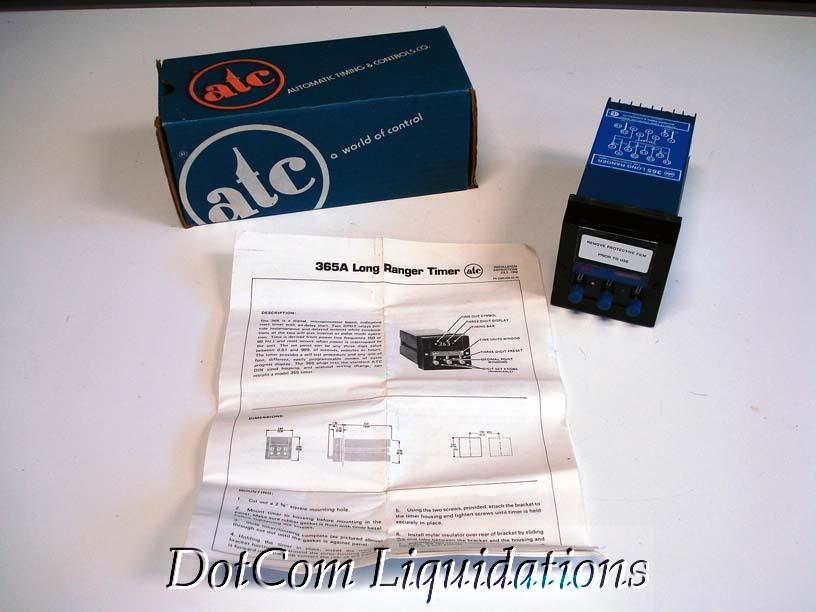

This is a brand new 365A Long Ranger Timer from Automatic Timing and Controls, in the box and opened only for photos. Instruction Manual is included. This is new old stock from the military.
