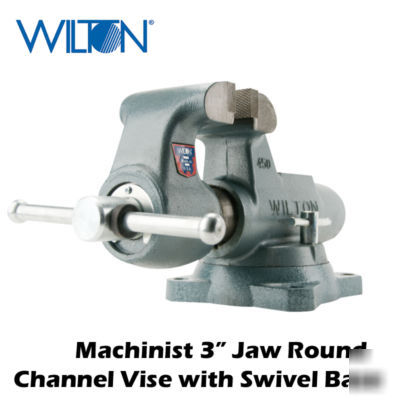

Wilton 300S 3" machinist vise w/ swivel base
Model No. 10006 / Stock No. 300S
Proudly made in the USA, the Machinist round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Machinist round channel vise nut is anchored at the rear. This rear anchored nut provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly. This keeps debris out and lubrication in for a smooth operation.
The Machinist vise is equipped with main jaws and a machined anvil work surface. The main jaws are made from high strength steel and are fully replaceable. The Machinist vise is also equipped with a swivel base with dual locking nuts. The open locking design of the Machinist base allows for a full 360 degrees of rotation. To prevent rotation during use both the locking nuts and base have serrated edges that interact positively to assure a non-slip grip when tightened. The main base has four pre-cast holes for mounting the vise to a work surface. Each vise includes a mounting template for quick no guess hole placement for mounting.
* Jaw Depth "
* Jaw Height "
* Jaw Width 3 "
* Opening Capacity Max 4 3/4 "
* Serrated Jaw Inserts # 2903080
* Throat Depth 2 5/8 "
* Type of Base 360 Swivel
* Type of Nut Straight line pull
* Smooth Jaw Inserts # 2903090
* Center Distance 2 "
* Bolt Circle Diameter 6 3/8 "
* Height 6.7 inch
* Width 6.8 inch
* Length 15.2 inch
* Net Weight 29.25 pound
