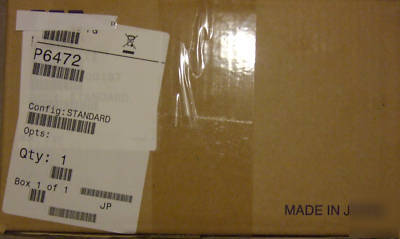

Tektronix P6472 pecl / lvpecl probe for TLA7PG2
Tektronix P6472 Probe for use with the TLA7PG2 Pattern Generator module for the TLA700.
Current Retail price for a refurbished one is $695. You should assume the new one was twice or three times this. Don't just watch it if you want it.
I am going to assume if you happened to reach this then you know what you are looking for. The information below is pulled from the Data sheet available on the Tektronix website. To be honest, I don't know what much of that means, but since you are looking, I am guessing you do.
P6472 PECL/LVPECL Probe Number of Data Outputs 8 in full channel mode or half channel mode. Number of Clock Outputs 1. (Only one of clock output and strobe output can be enabled.) Number of Strobe Outputs 1. (Only one of clock output and strobe output can be enabled.) Number of External Event Inputs 2. Number of External Inhibit Inputs 0. Clock Output Polarity Positive. Strobe Type RZ only. Strobe Delay Zero or Trailing Edge. Output Type 100EP90 for data output. 100EP90 for clock/strobe output.Rise/Fall Time (20% to 80%) Rise: 330 ps typical. Fall: 970 ps typical.Output Voltage Level PECL, LVPECL.Data Output Skew <385 ps between all data output pins of all modules in the mainframe after inter-module skew is adjusted manually.<370 ps between all data output pins of all probes of a single module.<340 ps between all data output pins of a single probe.Data Output to Strobe Output Delay +2.93 ns when strobe delay set to zero.Data Output to Clock Output Delay +1.12 ns.External Clock Input to Clock Output Delay 50 ns.Event Input Voltage Level PECL, LVPECL.Input Type 100EL91, unterminated.Minimum Pulse Width 150 ns.
