Yaesu gs-232B (computer controller)

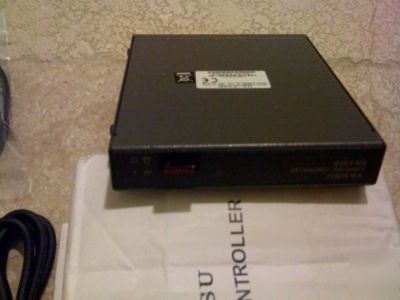

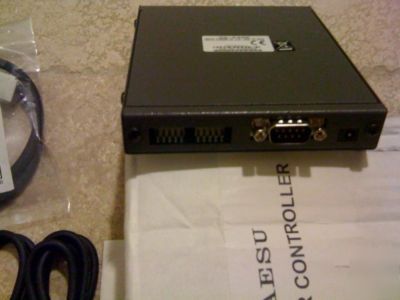

The Yaesu GS-232B Rotor Computer Interface provides digital control of most Yaesu antenna rotators. The GS-232B contains its own PIC18C452 microprocessor with ROM and RAM and 10-bit analog-to-digital converter. The 3 wire async serial line can be configured for serial data rates from 1200 to 9600 baud. The unit has a DB-9 male connector for to connection to the RS232C COM port of your computer.

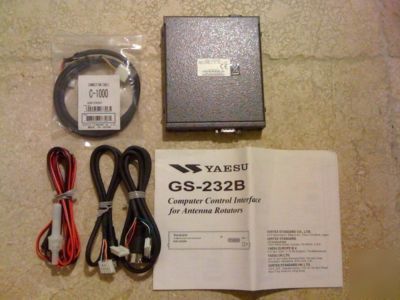

Supplied items include: Control cable for the Azimuth rotor (5 in to mini DIN), Control cable for the Az/El rotor (Dual 5 pin to DIN cable), DC power cable and hook and loop fasteners.
This device requires 12 VDC at 110 ma (such as NC-72B). The Yaesu C1000 cable is required for the SDX series. 110x21x138mm 380 g.
