New 7KW general radio 0-280V@0-25A dual metered variac
NEW 7KW! GENERAL RADIO 0-280V@0-25A DUAL METERED VARIAC
IMPORTANT INFORMATION: WE OPERATE A FACILITY THAT EXPERTLY CUSTOM BUILDS THESE VARIAC TYPE AUTOFORMERS FOR ANY VOLTAGE AND CURRENT RATING FOR U.S. AND INTERNATIONAL STANDARDS.
AFTER CAREFUL ASSEMBLY, EVERY VARIAC IS FULLY TESTED AT THE MAXIMUM RATED LOAD IN OUR FULLY EQUIPPED TEST LAB!

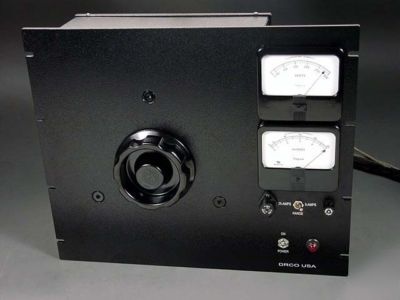

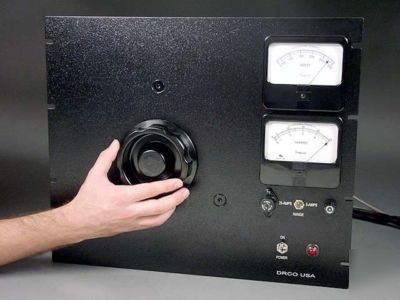

THIS VARIABLE AC POWER SOURCE FEATURES AN EIA STANDARD 19" RACK MOUNT PANEL (9-RU, 15-3/4") FABRICATED FROM 1/4" THICK 6061-T6 ALUMINUM ALLOY THAT HAS BEEN PECISION MACHINED AND FINISHED IN TEXTURED GLOSS BLACK POWDER COATING WITH LAZER ENGRAVED MARKINGS.

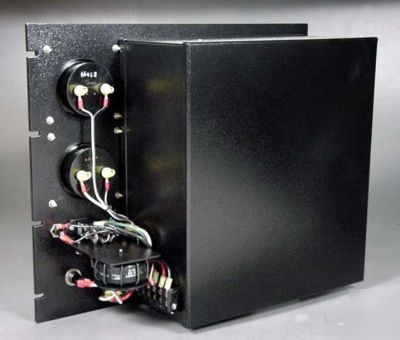

THE GENERAL RADIO MODEL W50H VARIAC IS MOUNTED TO THE RACK PANEL AND IS ENCLOSED WITHIN A FULLY SHIELDED 16-GUAGE STEEL HOUSING ALSO FEATURING TEXTURED GLOSS BLACK POWDER COATING INSIDE AND OUT.

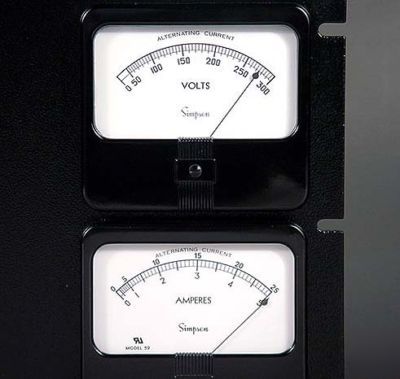

THE DUAL 5" PRECISION TYPE ANALOG METERS (MADE BY THE FAMOUS SIMPSON INSTRUMENTS COMPANY!) PROVIDE ACCURATE METERING OF 0-300 AC VOLTS AND A DUAL RANGE (0-5 AND 0-25 AMPS) AC AMP METER WITH HIGH AND LOW RANGE FUSING ALSO PROVIDED

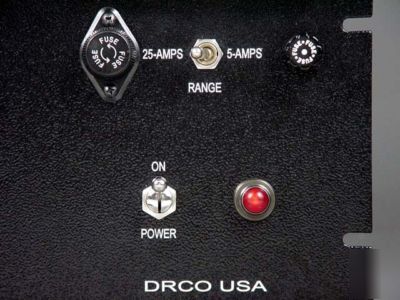

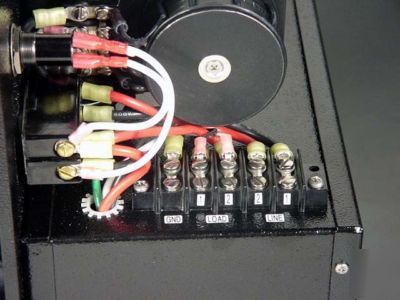

THE HEAVY DUTY DOUBLE POLE, SINGLE THROW MAIN POWER SWITCH STATUS IS INDICATED BY A NE-51 PILOT LIGHT AND THE LINE / LOAD, INPUT / OUTPUT AND GROUND CONNECTIONS ARE MADE VIA A REAR PANEL "BARRIER STRIP".
THIS IS AN INDISPENSABLE TOOL FOR TESTING OR DESIGNING ANY ELECTRONIC OR ELECTRICAL EQUIPMENT THAT REQUIRES AC POWER FROM 0-280 VOLTS 50/60HZ @ 0-25 AMPS.
DRCO 280-25-A RACKMOUNT METERED VARIAC C96-XXXX-WH
