Esd generator probe

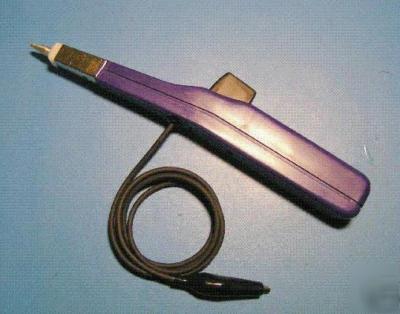

The Bartek Model 800 ESD generator probe is an ideal low-cost tool for the design engineer, test technician, or quality assurance test engineer. This generator is targeted for use in pre-compliance testing used during product development, as well as, quality assurance testing or manufacturing troubleshooting. Although the Model 800 is not intended to be used as a test apparatus for EN 61000-4-2/IEC 61000-4-2 Qualification, it is designed for a quick and simple assessment of ESD susceptibility and ESD trouble-shooting at a very affordable price. Currently ESD generators employed for EN 61000-4-2 testing range from $3400 to $8000. Although these tools are designed to meet all the specified discharge parameters for ESD testing, they are cumbersome and overkill for simple ESD troubleshooting.
For additional information, including User Guides and ESD-800 FAQ go to: http:// /esd.html
* Discharge voltage: 4 - 16 Kv (Both +/- polarity, - when depressing, + when releasing).
* Discharge mode: Air discharge.
* Discharge series resistance: 330 ohms
* Typical discharge rise time: <30 nS (Depending on length of an earth conductor).
* Power Requirement: None. Uses an internal piezo electric generator.
* Piezo materials discharge capacity: 50 pF.
* Discharge Energy: 0.4 6.4 milli-Joules.
* Minimum life cycles: 45000.
* Dimensions: 9.6" x 2" x 1".
