2 pilz pnoz X1 safety relay 24V ac/dc ** **

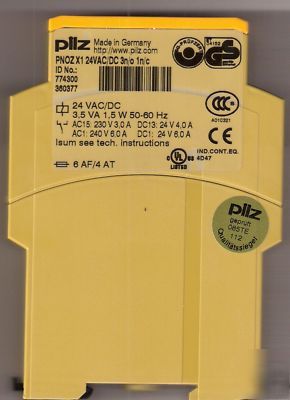

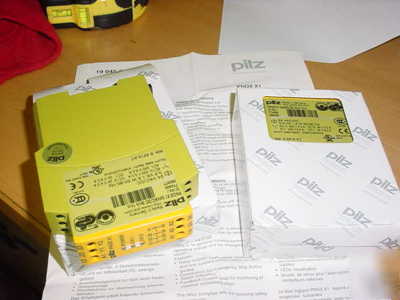

2 Pilz PNOZ X1 Safety Relay 24V AC/DC New in Box with Instructions
The Pilz PNOZ X1 Safety Relay is for use in:
Safety Ciruits according to VDE 0113 Part 1 and EN 60204 (e.g. with movable guards).
The unit is NOT suitable for use with non-contact guards, as a dynamic start is not possible.
The Relay PNOZ X1 is enclosed in a s-95 housing. The unit can be operated with 24V AC / DC.
There is no galvanic isolation between the operating voltage and the emergency stop circuit.
The relay complies with the following safety requirements:
The circuit is redundant with built-in self monitoring.
The safety function remains effective in the case of component failure.
The correct opening and closing of the safety function relays is tested automatically in each on-off cycle.
Units are fitted with an electronic fuse.
Please check my other listings for componet part...I have lots of good stuff to save you money on your projects.
