Valhalla scientific 2300 power analyzer
This unit will measure single or three phase power.
Higher currents may be used with external shunts (not supplied)
The Valhalla 2300 Series of Power Analyzers provides true RMS (AC+DC) measurements of voltage up to 600 volts, current up to 100 amps and power up to 60 kilowatts per phase. The maximum voltage and current input limits may be extended through the use of current and/or potential transformers. Nearly every conceivable power measurement application is discussed in later sections of the manual. In addition to the versatility of connections, the 2300 Series boasts an optional computer interface, available reduced voltage ranges for greater resolution, high accuracy and excellent frequency response.
Included Manufacturer Options:
IEEE-488 (GPIB) bus option included
The cosmetic condition of the unit is very good, the face is clean and there are only some minor scuff marks from normal use. Functionally, we tested all three phases using a single phase combination as described in the manual. We do not have the equipment to calibrate this unit but stickers that came with the unit indicated it was under a regular calibration program and was within calibration up until about a year and a half ago. All of our single phase measurements on all ranges showed that the unit appears fully functional. We are not able to test GPIB ports but have no reason to believe the option isn't functional.
The below pictures are large, please give them time to load. Expand them to 100% and you can pan around to see all details.

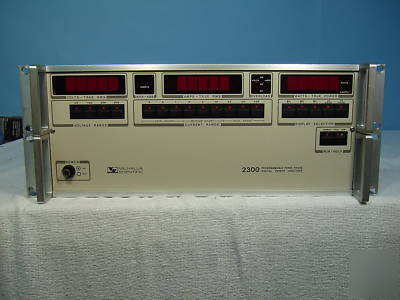

Here is a picture of the FRONT OF THE UNIT
Here is a picture of the REAR OF THE UNIT which also shows the top open for external connections.
Here is a link to the Valhalla Scientific Site for the full Operations/Service manual: MANUAL
The manual is about 60 Mb so you may want to save to your computer rather than opening it here. The Valhalla site is
Thank you for taking the time to review our product. We are in the business of supplying quality used and refurbished test equipment. This is what we do, and we try to do it with excellence and integrity. We are NOT "Surplus Sellers" who cut and run. We have the equipment and expertise to properly refurbish and service the equipment we sell.
Thanks again and please don't hesitate to contact us if you have any questions.
