Honeywell TB7220U1012 commercial pro stat BAYSTAT050A
Honeywell TB7220U1012 CommercialPRO 7000 Thermostat
The COMMERCIALPRO(R) 7000 Programmable Thermostat is an effortless, seven-day programmable thermostat that provides universal system compatibility, precise comfort control and is easy-to-program. The TB7220 provides temperature control for gas, oil, electric and heat pumps for up to 2 heat, 2 cool systems.

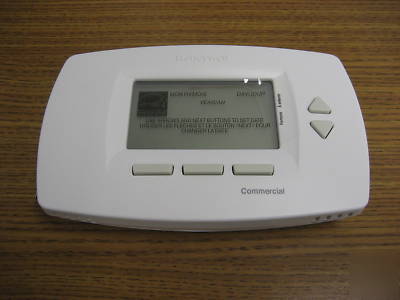

Large, clear display with backlight shows the current and set temperature and time-even in the dark.
Menu-driven programming make setup effortless.
Real-time clock keeps time during power failures and automatically updates to daylight savings.
Saving Changes notification lets you know when the schedule changes have been saved.
Change reminders let you know when to replace the batteries.
Holiday Override options allow you to override the program schedule, as desired.
Speedy same-schedule programming-no need to copy multiple days.

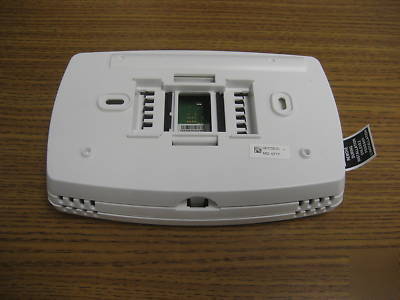

Armchair programming allows you to remove the thermostat from the wall for programming.
Programmable Commercial Thermostat
24 Vac heating and cooling systems
Up to 2 Heat/2 Cool Conventional

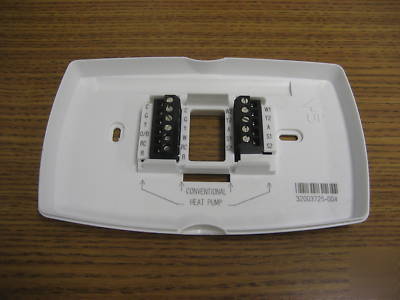

R, Rc, W (O/B), W2 (W1), Y, Y2, A, G, C, S1, S2
Heat: 40 F to 90 F; Cool: 50 F to 99 F
Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
6 in. wide x 3 3/4 in. high x 1 3/8 in. deep
152 mm wide x 96 mm high x 35 mm deep
Includes A terminal to enable an economizer or control a lighting panel when used as a time of day relay
Selectable programmable or non-programmable.
