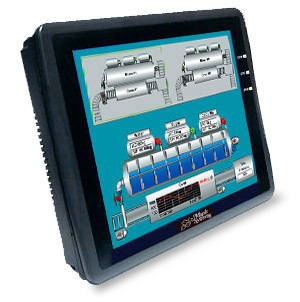

Maple systems ivory hmi 612T touch screen windows ce
These are brand new units, and come with all originally included hardware, a programming cable and CD.
Here's the tech specs on this particular model: http:// /products/ivoryseries/hmi612t.htm
Size (Diagonal) 12.1 inches [307 mm]
Size (W x H) - 9.75 x 7.25 inches [248 x 184 mm]
Pixel Pitch (H x V) - 0.31 x 0.31 mm
Viewing Angle - 95/95/120/120 (T,B,R,L)
Backlight - with 50,000 hour minimum life span
Type - 4-wire analog resistive
Light Transmission Above 80%
Life 1 million activation minimum at single point
Microprocessor - 200 MHz Cirrus Logic EP9315 ARM920T
Storage 32 MB Flash memory on board,
1 CompactFlash memory card slot,
I/O 3 USB 2.0 ports (Host 12 Mbps)
Sound Output AC '97 20-bit stereo audio
Operating System Microsoft Windows CE.netTM 5.0 Professional inside
Total Depth - 2.0 inches [51 mm]
Panel Cutout and Dimensional Drawings
Wiring - field-wired to external terminal strip for power and D-style communication connectors
Operating Temperature - 32 to 113 F [0 to 45 C]
Storage Temperature - -4 to 140 F [-20 to 60 C]
Relative Humidity - 10% to 90% @ 40 C (non-condensing)
Vibration Endurance - 10 to 25 Hz (x,y,z direction; 2G; 30 minutes)
Complies with EN50081-2 (1993) & EN50082-2 (1995)
Current Requirements - 1000 mA instantaneous, 500 mA steady state
Serial Port COM1 - RS-232 or RS-422/485
Serial Port COM2 - RS-232 (programming port only)
Serial Port COM3 - RS-232 or RS-485 2W
