Bourg BB3000 perfect book binder - BB3001 BB3002

Bourg BB3000 Perfect Book Binder - BB3001 BB3002

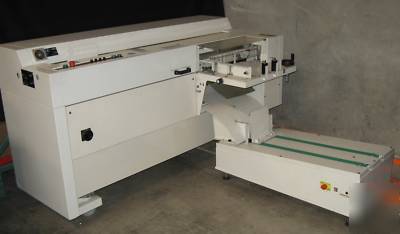

C.P. Bourg Perfect Binder BB3000
The C.P. Bourg BB3000 Single-Pocket Perfect Binder represents a state of the art solution to high volume in plant perfect binding. Its tailored engineering maximizes productivity, operator safety, and reliability. The BB3000 Binder can produce up to 500 milled and glued books per hour with one operator. Superior features include:
Unique Shield Design (UL Approved)
Toolless Change Over From 2 Sheets to 1-3/4" Thickness
Production of up to 500 1/4" Perfect-Bound Books per Hour
Automatic Suction Cover Feed Station & Conveyor Delivery
Flat Sheets or Signature (Milling & Scoring)
Padding or Perfect-Bound Book (Four Pre-Set Programs)
The BB3000 perfect binder is profitable, reliable and safe - three of the most desirable features in business today!
1. Operator control panel located at load area:
A. Clock timer to preset warm up and shut-off times to optimize production.
B. Two-button clamp operation with light to indicate ready condition.
C. Lighted clamp opening button.
D. Push-button vibrating jogger with on light indicator. (Foot pedal controlled when in off position).
E. Glue wheel and 100% temperature control with light indicator.
F. Milling control for saw/notching with light indicator.
G. Carriage aperture control to assist loading action.
H. Speed (close / normal slitting density) optimization button with light indicator.
I. Program knob with 4 programs.
1. Full perfect binding with milling, nipping, etc.
2. Perfect bind with milling, bottom pressure but no nipping pressure (book with gauze back).
J. Binding time variable control adjustment.
K. Nipping pressure variable control.
L. Vacuum control for cover station.
M. Gluing length adjustment (begin).
N. Gluing length adjustment (end).
Q. Drum temperature adjustment.
A. Carriage clamp will hold from 2 sheets to 1.75 inches of stock thickness.
B. Minimum book size 3.5" x 5.5" (h x l).
C. Maximum book size 12.5" x 15.125" (h x l).
D. Push button carriage aperture control with two (2) settings.
E. Carriage clamp aperture setting memorized after first book.
F. Carriage clamp supported front and rear with recirculating bearings.
G. Built-in vibrating jogger assures quality every time.
H. No tools or spacers needed for clamp preparation.
B. Scoring or notching is accomplished by mounting two small blades on top of milling blade.
C. Milling is infinitely variable from 0" to 1/10".
D. Dust is removed by vacuum suction and dust brush to eliminate glue contamination.
E. Dust/chip waste bag eliminates work area contamination.
F. Milling area is completely covered for operator safety and minimization of noise.
A. Binder utilizes hot-melt adhesive with a low melting point.
B. Variable temperature controls 140 C - 200 C. Optimizes glue characteristic and binding ability.
C. Automatic speed adjustment that compensates for book thickness.
D. Dual state glue warm up provides a standby mode to promote glue life.
E. Heaters for glue both in tank and glue drum.
F. Adjustable heated bar evens and smoothes glue applications.
G. Adjustable glue drum wiper so no glue "drip edges" are necessary.
H. Glue thickness adjustable by thumb wheel.
I. Glue tank drain tap, no tools required.
J. Glue funnel provided for easily accessible glue area.
K. Optional charcoal fume extractor or external fume venting connectors available.
L. Glue area completely covered for absolute operator safety.
A. Vacuum cover feeder to handle all stocks.
B. Cover feeder accommodates up to 2.75" of covers.
C. Covers may vary from 20lb. bond to 110 lb. index. Heavier covers require pre-scoring.
D. Cover length registration done with handwheel and monitored by calibrated position indicator.
E. Variable air-sheet separation.
F. A cover misfeed detector will shut system down and avoid needless jams.
G. Lead edge of spine cover adjustment is on cover table and can correct for lateral position and skew.
H. All cover feeder areas covered to insure operator safety.
I. Minimum cover size 3.25" x 8." (w x l).
J. Maximum cover size 15.125" x 27" (w x l)
A. Fully adjustable to assure precise and consistently square spines.
B. Nipping height adjustment accomplished by lever control.
C. Nipping pressure controlled by potentiometer on control panel.
D. Nipping aperture adjustment for correct settings and optimization of productivity.
E. Teflon coated nipper plate eliminates any chance of glue on nipper area.
F. Electronically controlled ten (10) position dwell timer for optimum cover application time.
7. BBR Delivery Stacker/Conveyor:
A. Vertical stacking delivery conveyor automatically receives and stacks up to 30" of books with spine down to reinforce binding and promote productivity.
B. Auto-shutoff switch to indicate a full conveyor.
A. Machine safety covers cover all operating areas.
A. Electrical: 220V, 15A, 3 phase.
B. Weight: 990 lbs. (includes BBR delivery 110 lbs.)
C. 74" length x 43"(+30" BBR delivery) x 41" height
D. Caster mounted for easy movement.
Note: PFS is not responsible for the accuracy of the above mentioned product specifications. If the specifications are important to you, please double check the specific details for listed machines by serial number, review the listed manufacturer s web site (above) and/or feel free to contact us (PFS) for additional details.
