Bookleteer pro. bookletmaker, creasing mc. perforating
Special Offer for USA & Canada , Air freight delivery for same as Europe 24.00 (US$36.00approx)

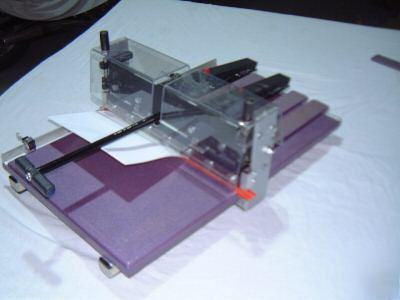

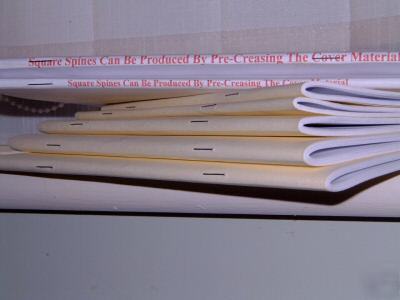

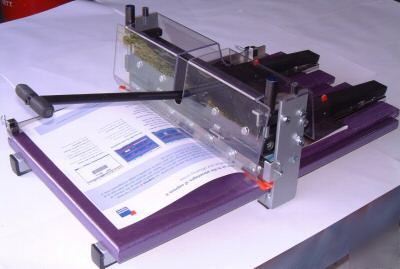

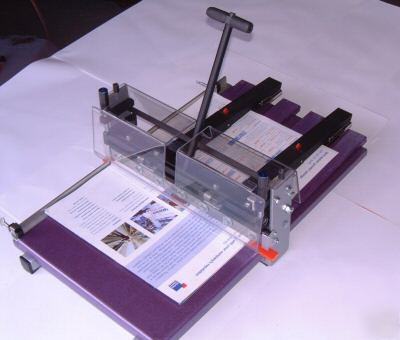

Bookleteer booklet making machines allow anyone to produce professionally presented booklets at low cost and with ease of operation. Booklets of size A3 folded to A4, A4to A5, A5 to A6 etc can be produced on this portable table top machine at a rate of approximately 10 per minute. Maximum folio thickness is about 20 sheets of 80 GSM producing an 80 page booklet. Square spined booklets can be formed by pre-creasing the cover card.
The bookleteer can also be used as a card creasing machine for material from digital paper stock up to a massive 2500microns using suitable matrix
DESCRIPTION OF OPERATION. NEW ! Watch a demonstration video at /bookleteer
The folio is inserted to backpaper stop with cover uppermost, pushing the operating lever back inserts 2 staples through folio, The folio is withdrawn, turned top to tail and re-inserted setting to front paper stop with folding blade over the spaples. The lever is pulled forward this time to form a plunge fold thus forming the booklet, The booklet is removed and closed.
As a creasing machine the folding die is replaced with a creasing matrix strip (supplied) which has 2 operating faces to suit paper up to 600+ gsm card very heavy card up to 2500 microns can be creased using the folding die. Operating pressure is light due to the high leverage action.
Your Bookleteer can be quickly converted to a perforating machine by fitting the perforating blade bar, this replaces the folding/creasing blade.no tools are required to make the change.
Paper up to 160 gsm can be perforated with a linear blade of 24 tpi. Pressure adjustment is easy with external pressure control screws.
Bookleteer is made by the makers of the very successful Creasemate creasing machines which are the best selling creasers in the UK.
For further information or samples of booklets produced creases or perforation please contact me on tel 01728 833730 or email
