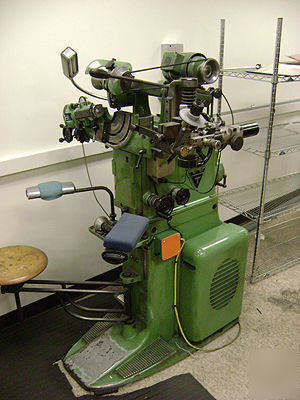

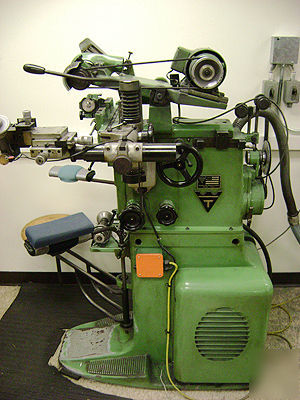

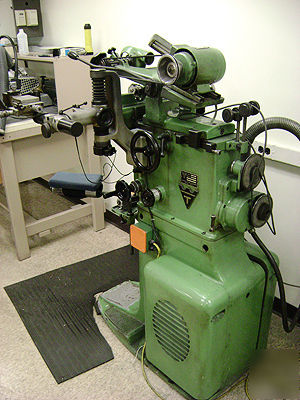

Technica model hms-5500 carbide tool grinding machine

Technical Specifications: * Item # 6926-430
* Voltage: 220-380, 3 Phase, 50/60 Cycle
* Longitudinal way of table: 110mm
* Vertical adjustment of grinding head: 155mm
* Grinding spindle speeds: Number (steps): 5, from 2600 - 8700 RPM
* Grinding spindle motor: 0.35 HP
* Estimated machine weight: 370 kg.
* Overall dimensions: 1200 x 600 x 1450 mm

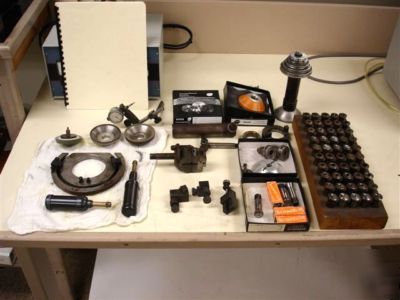

EQUIPPED WITH: * Inspection / Measuring Microscope Attachment - Universal Vise With Clamping Section - Setting Gauge For Single Lip Cutters - Feed Control - Diamond Wheel Arbor - Spare Grinding Wheel Quill - Grinding Wheel Arbor - Assorted Wheel Adaptors - Concentricity & Alignment Checking Fixture - Full Set Collets - Instruction Manual
Contact Cliff Davis at 401.724.3200 during normal business hours (EST) or email ****@goldmachinery.com referencing 6926-430.
We will partially crate this item for $195.00 or we will skid and cover when possible for $95.00. As always we will load your truck from our dock at no extra charge. This item may also be transported via flat bed truck. We will assist in rates if requested.
