High resolution ultrasonic thickness gage +protect case

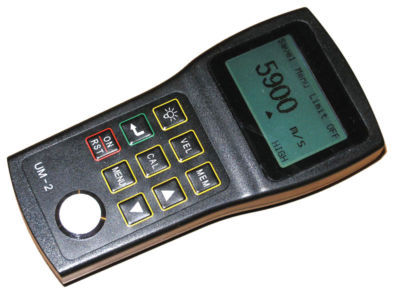

Ultrasonic Thickness Gage / Gauge / Tester - UM-2
High Resolution of 0.01mm or 0.001 inch; Display in both inch and mm
Compact Design with Comfortable and Durable Structure
with Rubber Protective Case included ($39 value)
~~ High Accuracy and Reliability ~~
The UM-2 is a high accuracy, hand-held Ultrasonic Thickness Gauge with the best performance and reliability over the world! It uses the most advanced microprocessor and ultrasonic technology to offer users many outstanding features. It features reliable and stable reading, convenient data display (in both millimeters and inches), high resolution (0.01mm), simple to use through the menu, durable and comfortable exterior structure, low power consumption (two of AA batteries). These features make UM-2 unequalled in its performance as well as its value!
UM-2 is manufactured under the strict quality control guidelines established by ISO 9001: 2000 Standards. Its quality is insured by our return policy and full-coverage warranty.
Well Made, Well Shaped, Well Performed and Well Priced - The Best Price in the Market
email us if you have more concerns about the product and warranty for this item.
(Please order our DW-2 model if you do need download test results to PC)
1. UM-2 Main Unit with built-in Calibration Block (4.0 mm)
2. Standard Probe - PT-08 (90 Degree angle)
3. Coupling Paste (EMPTY bottle will be included for the coupling paste - kind of engine oil, to avoid the leaking of the oil during transportation)
4. Operation Manual in English
5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
6. Foam-Fitted Carrying Case to provide the best protection for the gauge
7. Rubber Protective Case with neck Strap
4mm end-diameter probe with cable (working range: 0.8 mm - 22.0 mm or 0.03 in - 0.85 inch) ($189.00 extra)
5 Level (4 step) Chrome Calibration Block - in inch ($49.00 extra)
* Metal Materials: Al, Fe, Stainless Steel, Cu, Brass, Zn, Ag, Au, Sn,....
* Acrylic Resin, Water Glass, ...
* Other materials with known sound velocity values.
* Measuring method: Ultrasonic pulse echo
* Measuring range: 0.80 - 220.0 mm (or 0.03 - 8.66 inch) -> in either mm or inch
* Display in both mm and inch
* Accuracy: (0.5%H +/- 0.02) mm (H is thickness of the sample)
* Sound velocity range: 1,000 - 9,999 m/s, adjustable by 1 m/s
* Memory capacity: Store up to 500 test values
* 4 digit LCD display with advanced backlight
* Automatic power-off after being idle for 3 minutes
* Resolution: 0.01mm (0.001inch) (if thickness < 100.00mm) or 0.1 mm
* Two Points Carlibration available
* Power Supply: 2 X 1.5V AA Standard Batteries
* Working temperature: -0 C ~ +50 C
PT-08 (90 degree angle probe) included in the package as standard probe
Or, 5P-10 (Straight probe) to REPLACE PT-08 at no extra cost
or US $79.99 if added to the package as an extra or back-up probe
Included Rubber Protective Case with neck strap (US $39.00 value)
Optional Chormed 5 Level block (brand new, in inch) $49.00 extra.
4mm end-diameter probe with cable ($189.90) (measuring range: 0.80 mm - 22.0 mm)
Thanks for looking and ordering!
