35W 24V dc 1.5A regulated switching power supply [K024]

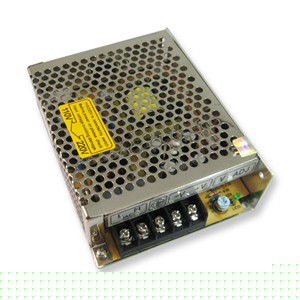

35W 24V DC 1.5A Regulated Switching Power Supply [K024]
K024-HS-35-24.jpg picture by hpstore2008
* Fixed switching frequency at 37KHz.
200ms, 100ms, 30ms at full load
85 132VAC/170 264VAC selected by switch 240 370VDC
COLD START 18A/115VAC 36A/230VAC
Protection type: Fold back current limiting, recovers automatically after fault condition is removed
-10 +60 (Refer to outputload derating curve)
10 500Hz, 2G 10min./1cycle, period for 60min. Each alongX,Y,Z axes
1/p-0/p:1.5KVAC 1/P-FG:1.5KVAC 0/P-FG:0.5KVAC
1/p-0/P, 1/P-FG,0/P-FG:100M Ohms/500VDC
Design refer to FCC Part15 J Conduction ClassB
435.2K hrs min. MIL-HDBK-217F(25 )
0.41Kg; 30pcs/13.4Kg/0.86CUFT
1.All paramenters NOT specially mentioned are measured at 230VAC input, ratedload and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance:includes set up tolerance, line regulation and load regulation.
s35-1.jpg S-35 1 picture by hpstore2008s35-2.jpg S-35 2 picture by hpstore2008
