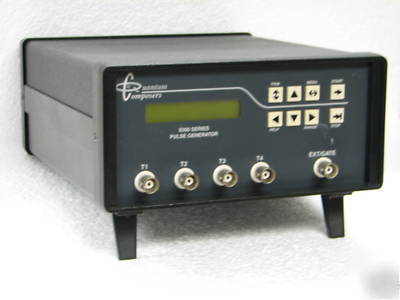

9300 precision pulse generator

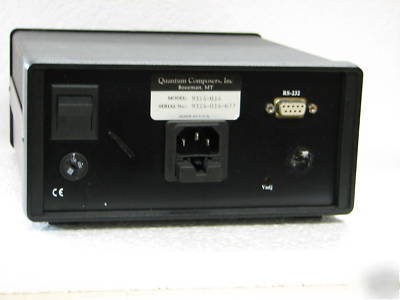

This unit is fully programmable through RS232 serial interface. Each channel is completely independent with pulse width, delay, mode control and 12 system memory storage settings.
* CHANNELS Four (4) independent outputs, with digitally controlled delay and pulsewidth.
* PULSEWIDTH 400 ns to 99.9999998 sec
* AMPLITUDE 1-10V into 50Ohm load 2-20V into high impedance
* ACCURACY 20 ns + .0001 x delay
* TIMEBASE 5 MHz, 25 PPM crystal oscillator
* RMS JITTER 10 ns + .0001 x period, 100 ns max
* TRIG DELAY Ext Trig to To < 10 ms
* RATE Dc to 1/ (75 ms + largest delay + period)
* THRESHOLD 3 VDc (3 mA into optoisolator)
* TRIGGER SLOPE Rising or falling edge
* GATE Active low or active high
* MODES Single shot, burst, duty cycle, continuous, external trigger, external gate
* RATE (To period) 100 ms to 99.9999998 sec (.01 Hz to 10 KHz)
* ACCURACY 20 ns + .0001 x period
* RMS JITTER 10 ns + .0001 x period
* BURST MODE 1 to 50,000 pulses
Quantum Composers is a leader in precision Pulse Generator technology. We offer a family of Digital Delay / Pulse Generator instruments to meet the technical and budgetary needs of any experiment. Please visit our website (link) to preview other models with higher performance specifications, functions, and programming.
