300MW+ 532NM green dpss laser output approx 450MW ttl
Only 1 Unit Left at this Price!
Get a sale unit while they are still in stock

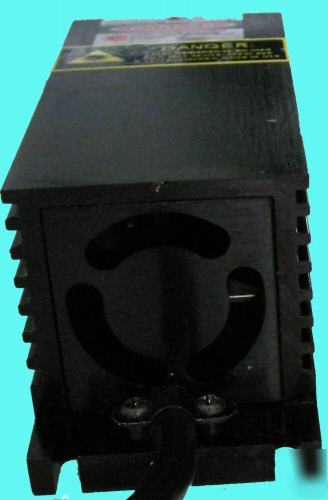

300mw+ Green Laser System at 532nm
You get over around 500mw for less than the price of other sellers 300mw lasers!
For example one popular seller of many lasers advertises their model Green 250e/250mw as 250mw but only guarantees 220mw!
Their 200mw model is guaranteed at 175mw.
As you can see, my 250mw lasers are at least 25mw or more OVER the stated power, so at least 275mw. My 300mw units average 360mw or more
_______________________________________________________________________________________________________________________
* Model Number: USL:GLS350-532+
* Output power: actual measured power output is currently approximately 500mw but this unit can reach well over 500mw+
* Stability (rms)(2h@25c): <+/-5%
* Beam diameter at the aperture (1/e2) (mm): <2mm
* Beam divergence (mrad): <1mrad
* Spectral linewidth (nm): <0.1
* Operating mode: CW or TTL (analog units are also available)
* Working temperature: 10~40c
* Cooling Method: TEC, Peltier with Forced Air Assist
* Warm-up time (minutes): 10 Minutes
* or "Edison" type plug for standalone use

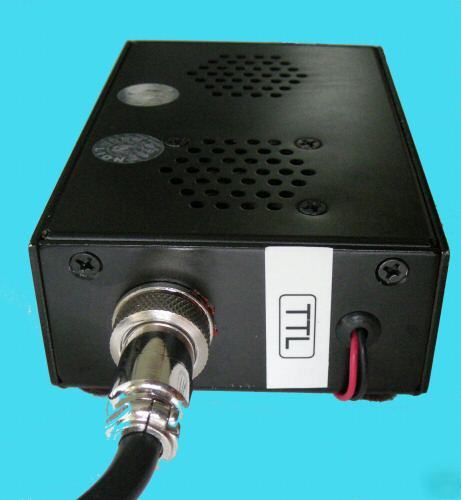

* Power Supply Connector: Multi pin "DIN" style. Laser head can be separated from power supply
* Working voltage: 85~265VAC
* Expected lifetime (hours): >6000H
I once ran into all sorts of problems and certain types of sellers when I started purchasing lasers and laser related items on the web. These are just some helpful hints when searching for your new item.
My measurement procedures: Power measurements are taken after the unit has been through a proper burn in and test period. The actual power measurements are taken with both Coherent Fieldmate and LaserMate meters to ensure accuracy. When taking these readings the laser beam is reflected off two different types of dielectric mirrors as well as through an IR filter. This is the ONLY way to get a true reading of laser output power.
A word of caution about laser sales:
Special Offer on Combo Pricing for laser unit plus Full Auto Animation software and scanner / galvos when you make purchase.
30kpps - 60kpps scanning speeds for professional quality lasershow animations
You can save an additional $1,000 on Cambridge Technology and Cambridge style galvos even more when purchased with Full Auto Software!
Check the Internet, You Will Find None Cheaper at Such a Quality
Limited Supply So Get One While You Still Can
