South bend RTB101 rotary table ~ original~ made in usa

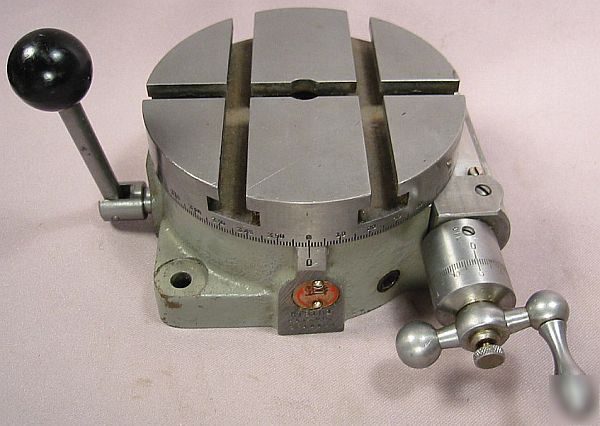

This is an really nice RTB101 South Bend Rotary Table.
Not only does it look great but it functions perfectly as well!
It has it's original "South Bend Machinery Gray" paint.
The original South Bend plate & stamping.
The table surface is in excellent condition.
Table features three T-slots for clamping work.
A couple of very minor nicks in the surface.
No cracks, chips, repairs, etc.
TABLE TOP DIMENSION: 4-1/2" Diameter
The 360 degree markings are nice & clear.
I guess you would call this the right side.
It has a 4" lever to lock the table in any position.
It is machined perfectly parallel with the table surface.
The table is turned by a worm gearing with a
graduated collar and ball crank. Each graduation
indicates a table movement of 3 minutes.
One complete revolution of the ball crank
turns the table 5 degrees. There is a thumb
screw on the front of the crank that locks
the graduated collar in any position.
The worm gear will swing away for rapid positioning of work.
