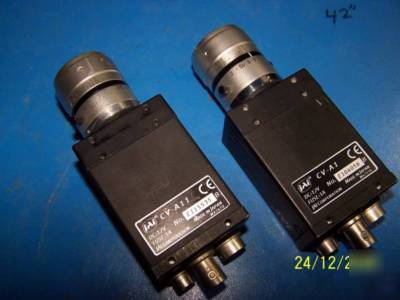

Jai prograssive scan cv-A11 RS232C + lens 20MM 1:1.20
Please have a look other listings many more similar items and full range of product accessories and components at very low prices
New compact size 1/3 progressive scan monochrome CCD camera
659 (h) x 494 (v) square pixels (VGA format)
Single channel video output
Extended range of functions and options compared with CV-M10
Shutter speeds from 1/30 to 1/100,000 second in 15 steps
Partial scanning 1/2, 1/3 and 1/6 for higher frame rates
Internal, external HD/VD or random trigger synchronization
Edge pre-select, pulse width control, start/stop trigger modes
Long time exposure with external VD pulse interval
Frame-delay readout in connection with pulse width controlled shutter
Exposure enable EEN, write enable WEN and pixel clock output
Short ASCII commands for fast mode setup via serial port
* Setup by Windows 95/98/NT software via RS 232C
Scanning system Progressive 525 lines 30 frames/sec.
CCD sensor Monochrome 1/3 IT CCD
Sensing area 4.9 (h) x 3.7 (v) mm
Effective pixels 659 (h) x 494 (v)
Pixels in video output 648(h) x 492 (v)
Cell size 7.4 (h) x 7.4 (v) m
Resolution horizontal 480 TV lines
Sensitivity on sensor 0.05 Lux, Max gain, 50% video
Video output Composite VS signal, 1.0 Vpp, 75
(with/without sync.) Video signal, 0.7 Vpp, 75
Synchronization Int. X-tal. Ext HD/VD or random trigger
Scanning Progressive scan, 525 lines, 30 frame/sec.
partial 1/2, 272 lines, 58 frame/sec.
partial 1/3, 215 lines, 73 frame/sec.
partial 1/6, 127 lines, 124 frame/sec.
HD sync. input/output 4 V, 75
WEN output (write enable) 4 V, 75
EEN out. (exposure enable) 4 V, 75
Shutter 1/30, 1/50, 1/60, 1/125, 1/250, 1/500,
1/1000, 1/2000, 1/4000, 1/10,000,
Pulse width control 1.5 H to 1000 H
Start/stop 1/30 to 1/10,000 second
Long time exposure 1 frame to
Programmable exposure 0.5 H to 1023.5 H
Frame delay readout Time from PWC trigger input to ext. VD input
Smearless readout Reduced smear at high shutter speeds
Functions controlled by Scanning format, Trigger mode,
RS 232C Readout mode, Shutter speed,
Trigger/WEN polarity, Clock/WEN output,
Programmable exposure, AGC level,
White clip, Setup, Manual gain,
AGC/manual gain,Internal/potentiometer
Commands and internal adjustments.
Functions controlled by VD input/output, HD input/output,
internal DIP switches HD and VD 75 termination on/off
Operating temperature -5 C to +45 C
Humidity 20 - 80% non-condensing
Storage temp./humidity -25 C to 60 C./20% - 90 %
Dimensions 29 x 44 x 66 mm (HxWxD)
