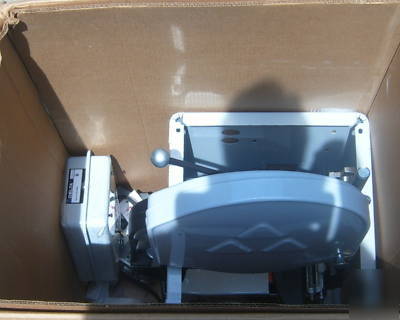

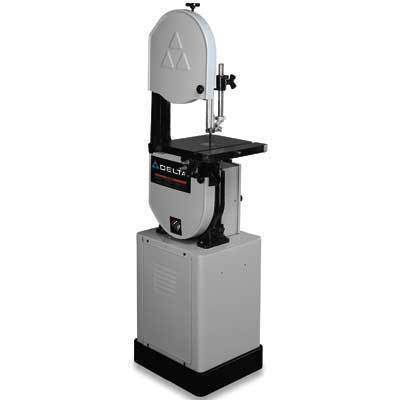

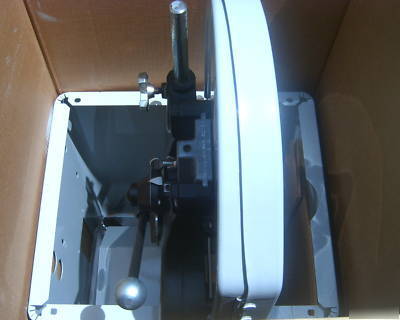

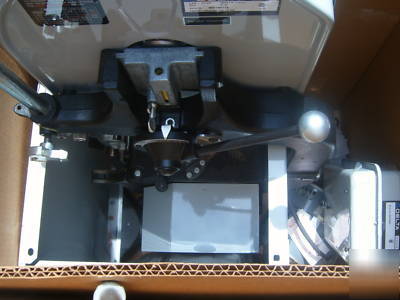

Delta 14" 28-348G 3 ph wood metal bandsaw lvc controls
DELTA 28-348G 14" WOOD AND METAL CUTTING BANDSAW With LVC CONTROLS
3 PHASE 1 1/2 HP 200-230/460 VOLTS
* Micrometer adjustment for ball bearing blade support and blade guide blocks assure superior accuracy
* Full 16" x 16" cast-iron table tilts 45 right and 3 left for beveling operations
* Capacity to cut stock up to 6-1/4" thick
* 4" intergral dust port for woodcutting operations
* Quick-stop table presets with table turret stop system
* Side take-out slot for blade permits use of solid front trunnion (not split for blide removal) located directly under work load; rip fence guide rails need not be removed when chaning blades
* Lower blade guides have safe, accurate, micrometer adjustment; lower guides angled to support blade to within 3/4" of table work surface - assures accurate cutting
* Nine-spoke, precision-balanced wheels
* Veri-Set index tensioning lever
* Multi-step pulley for changing speeds for different metal cutting operations
* Oil bath transmission for efficient transfer of power
* 14" Metal-Cutting, Wood-Cutting Band Saw - 28-348
* 1-1/2 HP, 200-230/460 Volt Three Phase Motor
* Arbor and Motor Pulleys & V-Belt
* Quick Index Tensioning Device
Here's an opportunity to own a workhorse saw that will lasta lifetime for hundreds less !!
