Young & bertke drying oven with conveyor drive 500F

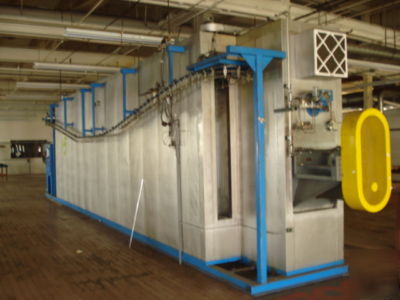

Young & Bertke Drying oven with Conveyor Drive
Young & Bertke Drying oven with Conveyor Drive 500F
Seller operated oven at 450F for thier process. They believe it will operate up to 700-800F. It would need to be looked at by someone that knows furnace construction to dertermine if it would operate at temperatures above 550F with out trouble.
Dart controls conveyor speed controller
Watlow infared thermo-ducer DSN4 Temp Controller
Honeywell DR4200EV2 Recorder w/ Digital Display
(2) Economite conversion burner - Gas fired
Part conveyor Opening = 9" x 63" tall from bottom of conveyor fixturing.
41' long x 57" wide x 36" of controller
New York Blower Co. Size 18 PLR - 2 Blowers
Each Blower/Burner is 300,000 BTU Gas Fired. Each burner is on the opposing side of the oven and blows to the center.
Unit is heated from opposing sides by 2 gas furnaces.
Conveyor drive is a 1/4 hp DC Drive. It could be switched out for a larger motor for heavier loads.
There will be a rigging/Loading fee at the time of sale.
