Yokogawa AQ7270 1310/1550/1625NM optical time domain

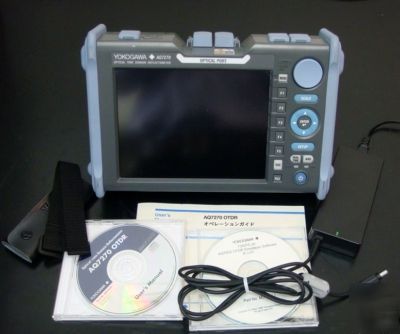

YOKOGAWA AQ7270 1310/1550/1625nm Optical Time Domain Reflectmter

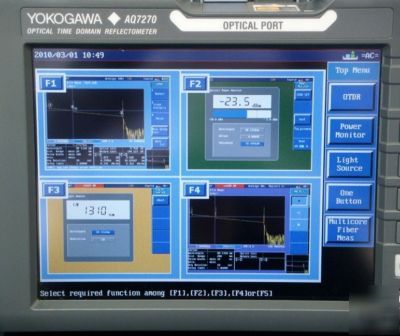

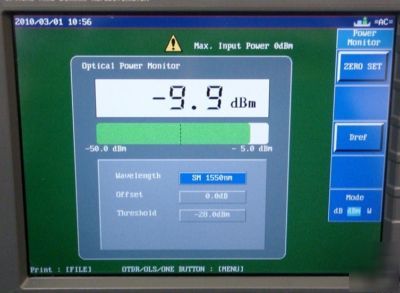

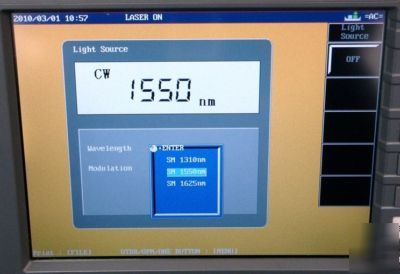

Mesurement : OTDR,Power Monitor,Light Source,Multicore Fiber Meas
Wavelength:1310/1550/1625 25nm Dynamic range:40/38/35dB Event dead zone:0.8m
Distance range:500m, 1km, 2km, 5km, 10km, 20km, 50km, 100km, 200km, 300km, 400km
Horizontal Axis Parameters Sampling resolution 5 cm, 10 cm, 20 cm, 50 cm, 1 m, 2 m,4 m, 8 m, 16 m, 32 m
Readout resolution 1 cm (Min.) Number of sampled data Up to 50,000 points
Group refractive index 1.30000 to 1.79999 (in 0.00001 steps) Unit of distance km, kf, or miles
Distance measurement accuracy Offset error: 1 m Vertical Axis Parameters
Vertical axis scale 0.2 dB/div, 0.5 dB/div, 1 dB/div, 2 dB/div, 5 dB/div, 7.5 dB/div
Readout resolution 0.001 dB (Min.) Loss measurement accuracy* 0.05 dB/dB

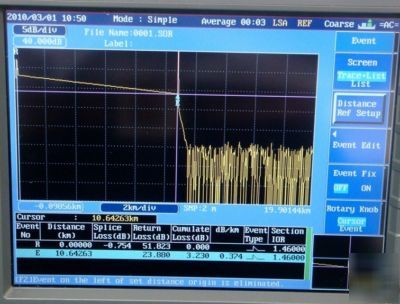

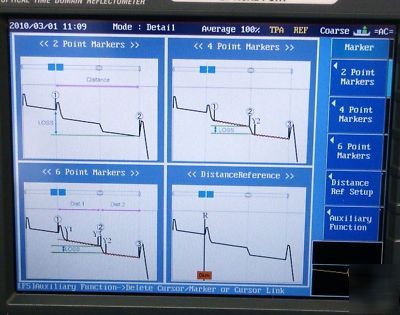

OTDR Measurement Function Distance measurement,Loss measurement,Return loss measurement

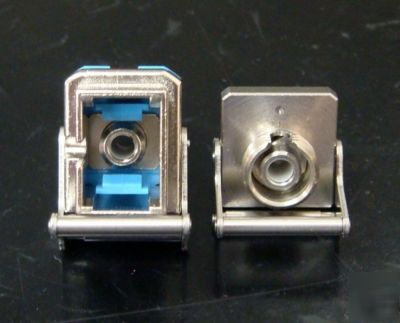

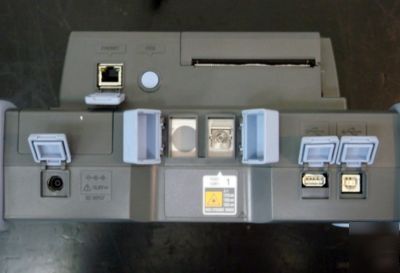

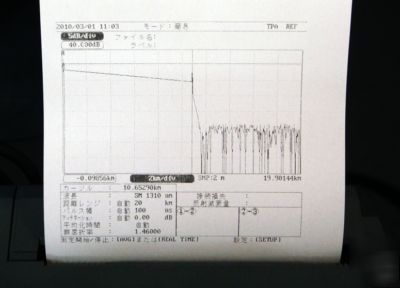

Optical I/O port SC,FC,(adapter) USB*2,Ethernet,Printer(model 735028)
Laser safety standards class 1 M (IEC60825-1:2001) Safety standard EN61010-1
Emission EN61326 Class A Immunity EN61326 Annex A Operating environment 0 to 45 C
Temperature (0 to 35 C when charging the battery) Humidity 85% RH or less (no condensation)
Storage temperature -20 to 60 C Battery Operation time 6 hours*1 Recharge time 5 hours*2
AC adapter Rated supply voltage 100 to 240 VAC Rated supply frequency 50 to 60 Hz Power consumption Max 70 W
(when battery charging, and optional printer printing)
Dimensions (W) 287(H) 197(D)85 (not including projections or options)
