Advantest Q7750 optical network analyzer w/ opt. 10
ADVANTEST Q7750 OPTICAL NETWORK ANALYZER

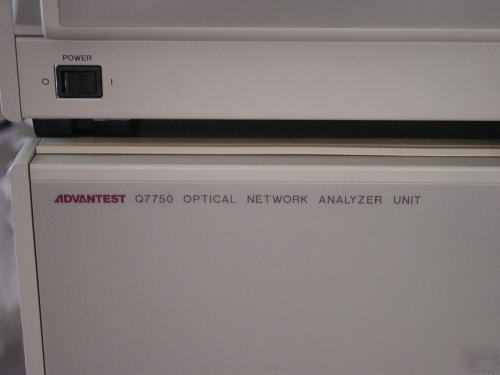

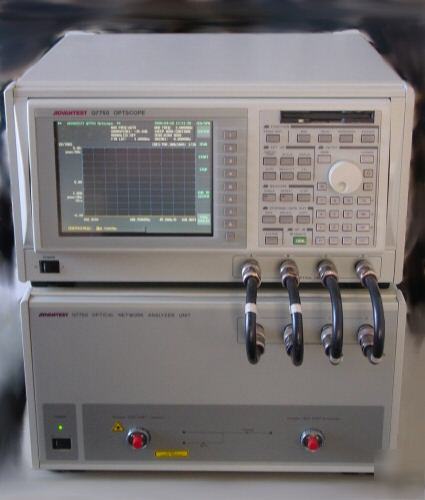

1- Advantest Q7750 Optical Network Analyzer Serial # 100903802 (same serial # on both units)

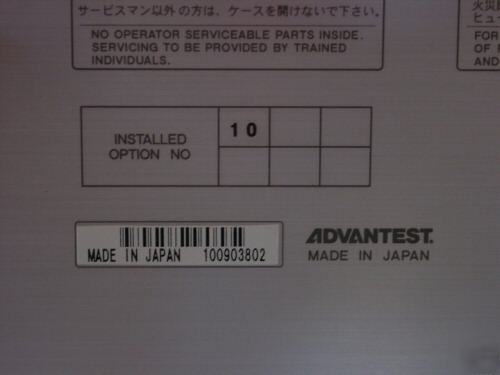

1- Option 10 (Improved Wavelength Accuracy)

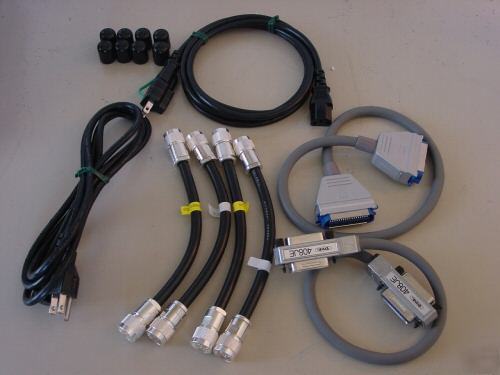

4- Interconnect Cables for the front of the units
2- Rear Cables to connect Port A and Port B
Because this unit is in such good condition, I am offering it with a 7-Day Guarantee.
The Q7750 is targeted at optical transmission design engineers and component manufacturers in the Dense Wavelength Division Multiplexing (DWDM) market. The Q7750 provides superior amplitude, chromatic dispersion, and group delay measurements for testing optical communication devices.
Controlling chromatic dispersion for long-haul, high-speed optical transmission systems in the design and manufacturing phase is critical. By providing 600 data points in four seconds, the Q7750 Optical Network Analyzer rapidly yields optical carrier-frequency measurements for optical elements. In addition, the Q7750 analyzer, with its narrow group delay measurement range of 25 ns and maximum resolution of 0.1 ps, allows engineers to accurately measure the overall chromatic dispersion of optical components, modules, and systems.
The Q7750 Optical Network Analyzer quickly and accurately characterizes a variety of optical communication devices including arrayed waveguided gradients, fiber bragg grating filters, and dispersion compensators.
The analyzer operates in the 1530-nm to 1600-nm wavelength range (C-band and L-band) and provides a narrow optical frequency resolution of 50 MHz over a 40-dB dynamic range.
