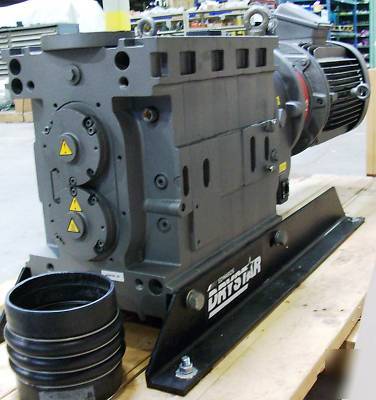

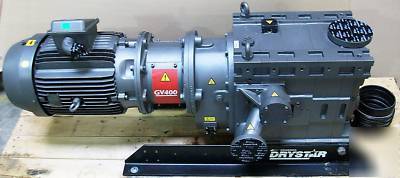

Edwards GV400 drystar 230/460V 60HZ A70761908 dry pump
Item Title: GV/GVM Drystar Series Vacuum Pump
Model Number: GV400 Drystar 230/460v 60Hz
Dry operation, non contact mechanism
Self valving - the pump can deliver to atmospheric pressure
Staged compression - efficient power use
Displacement (swept volume) : 540 m3h-1 / 318 ft3min-1
Pumping speed : 380 m3h-1 / 225 ft3min-1
Ultimate pressure : <0.4 mbar / <0.3 Torr
Power consumption at 10mbar/ 7.5 Torr : 7 kW / 9.4 hp

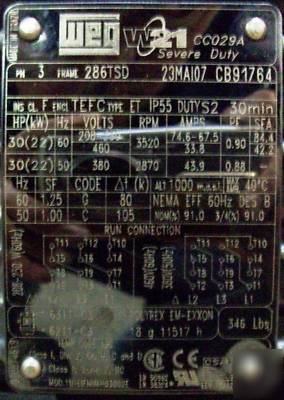

Motor rating : 18 kW / 24.1 hp
Cooling water flow at 20 C : 4 l min-1 / 1.1 gal min-1
Seal purge (dry air) : <22 l min-1 @ 0.4 bar/<0.6 ft-3min-1 @ 6 psig
Gear box oil capacity : 1.5 liter / 0.4 gal
Electrical supply : 380/400/415V 50 Hz 3
* Measured in accordance with Pneurop 6602 at 40 C

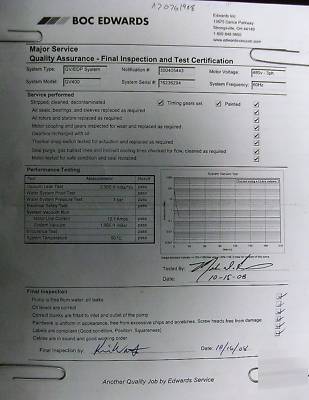

Condition: Refurbished By BOC Edwards (Paper Work Included)
Local Pickup or LTL only (1750lbs 31x81x35 class 65)
