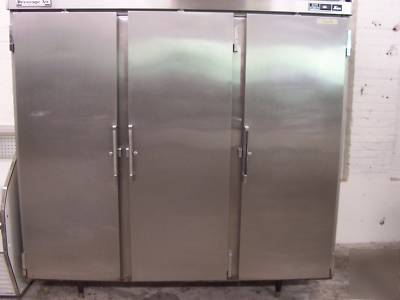

Bevair e series 3 door cooler/refrigerator
Specs: The exterior of the cooler measures 77" in width - 32" depth and 77" in height

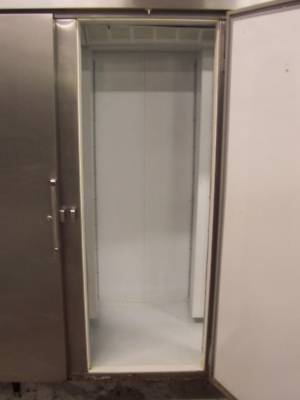

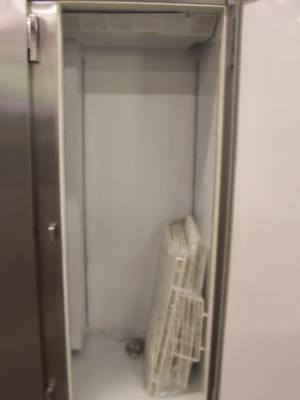

The interior has three equal compartments that are 25" wide and approximately 24" in depth.
Stainless exterior cabinet face, gray coated steel exterior sides
Locks standard on solid door models Snap-in magnetic gaskets Adjustable, epoxy coated steel wire shelves External digital thermometer
Heavy duty construction includes stainless front (doors and grilles) with #3
finish. Exterior sides are steel with gray, acrylic finish. Exterior top, back,

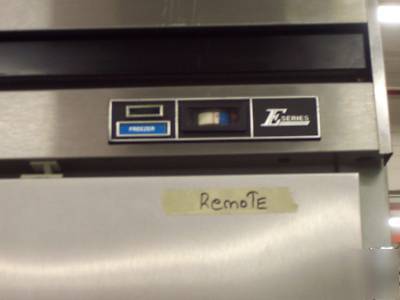

and bottom are galvanized steel. Exterior mounted thermometer is digital
type. Interior cabinet liner is anodized aluminum finish. Interior pilasters are
regular type. Interior shelves are steel wire-coated.
Cabinets are insulated with R22 foamed-in-place polyurethane insulation, 2
minimum thickness. All doors are full size unless specified half size and
include keyed door locks as standard with solid doors. Doors attach to cabinet
on cam lift hinges. Hinges permit doors to stay open at 120 degrees
and gravity self-close. A plug-in type, vinyl magnetic gasket is attached to
each door. Shelves are adjustable on 1/2 centers. Traffic tough work flow
handle is standard. Door openings include low wattage, anti-condensate
heaters. A switch located at the top of each full door opening activates light
and shuts off evaporator fan motor(s) when door is opened. Six inch,
adjustable, corrosion resistant legs are standard. A 9 cord is provided with
115-60-1 models. With 115/208-230 models, a J box is provided for hard
wire connection (4 wire system).
Unit s system is located at top of cabinet. A pressure limiting TXV
(thermal extension valve) is used to meter refrigerant between condenser
and evaporator. Defrosting is accomplished with electric
heaters. Defrost is time initiated, temperature terminated. A time
termination is provided as a backup fail-safe. Evaporator fans are
delayed from restarting until coil is adequately chilled down.
Operation of compressor is governed by temperature control behind
front grill. Hot gas (nonelectrical) condensate evaporator is located
at top of cabinet. Pressure relief port is provided to make rapid reentry
This cooler/refrigerator is in mint condition.
Includes remote condensing unit can be made self-contained for additional costs.
