> 4' x 13" femco, model wrd 12 - a radial drill,
4' x 13" femco, model wrd 12 - a radial drill,

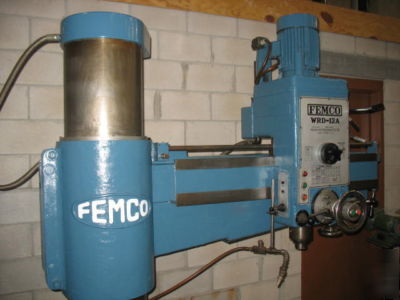

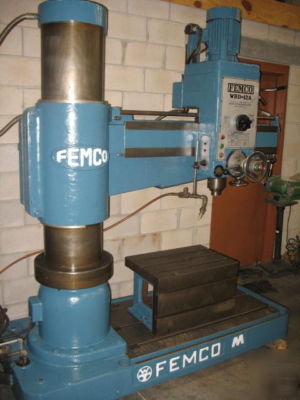

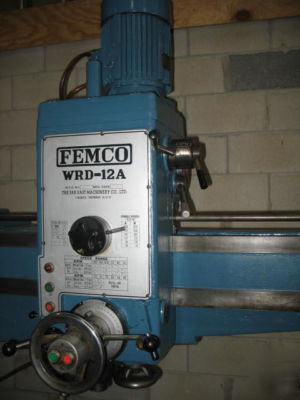

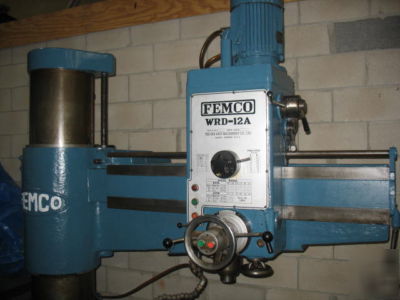

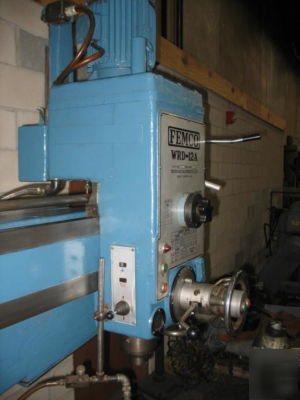

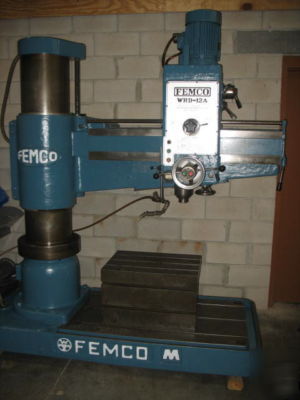

(1)Used 4' x 13" Femco, MODEL WRD 12 - A RADIAL DRILL, S/N 76-2176, New 1976
Drilling Capacity, Iron..........................................................1.75"
Column Diameter ................................................................13"
Arm Length .........................................................................52"
Max. Distance Spindle to Column..........................................48"
Min. Distance Spindle to Column...........................................12"
Max. Distance Spindle to Base..............................................48"
Min. Distance Spindle to Base...............................................24"
Spindle Horse Power............................................................5 HP
Spindle Speeds (12).............................................................40 - 1920 RPM
Spindle Travel......................................................................12"
Spindle Taper......................................................................5 MT
Usable Base Dim.................................................................32" x 52
Weight, Approx....................................................................6000 lbs

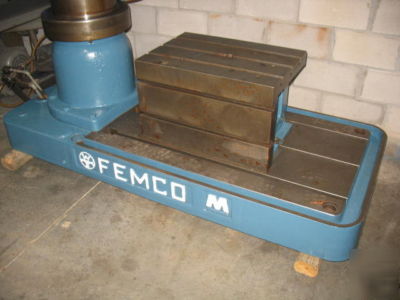

18" x 18" x 35-1/2" Cast Iron, Box Table
Push Button clamping of Head and Column
