Inverter control booster pump ibo-1500

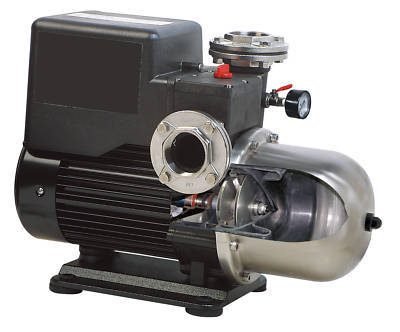

HERE WE HAVE IBO-1500 INVERTER CONTROL BOOSTER PUMP
The IBO series pumps are designed for water supply and pressure boosting in residential, commercial and light industrial applications where low or inadequate water pressure exists. It is suitable for boosting pressure from underground or surface water supplies.
Portable water or other clean or non-corrosive liquids.
The IBO is a complete, all-in-one unit, consists of pump, motor, invertor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
The Micro Frequency Inverter detects the instantenous pressure in the system through the pressure transmitted and adjusts motor speed to keep it at the required value. Depended on applications, the pumps offer energy saving or improved processing.
Compact design and quiet operation make this pump suitable for many applications.
The IBO is constructed from top quality corrosin resistant materials.
The IBO has automatic restart function. Once the pump starts to operate, the pressure sensor will automatically detect the pressure limit. If the pressure limit can not reach to the original setting within 2 minutes, the pump will stop and attempt to restart every 10 minutes until the function is deactivate. It will also stop when the temperature exceeds 55'C, and will restart when the temperature drops to 40'C.
The motor has built-in thermal overload to protect against high operating temperatures and over current.
The IBO has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have dripping tap or minor leak in the system.
The pumps will lift water up to 7.6m with foot valve and pump suction piping filled with water.
