Exatron 1050 8-72 mm tape & reel pcb psa taping system

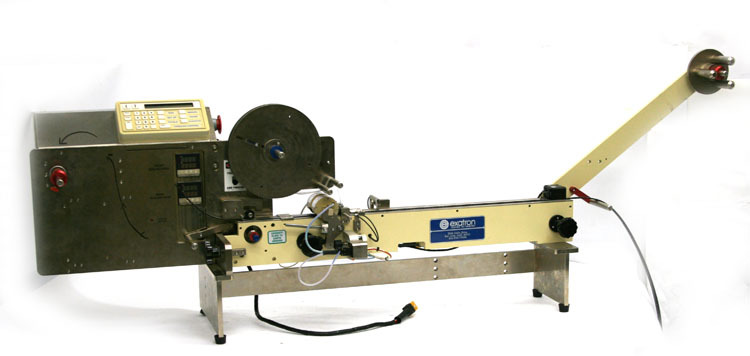

Exatron 1050 8-72 mm Tape & Reel PCB PSA Taping System
The Model 1050 replaces the standard tube output on Exatron handlers. Movement and sealing is controlled by the handler controller electronics. Depending on the test/programming time of the devices being taped, the highest throughput of the taping machine is 5000 UPH. In all cases, the handler can be programmed to skip test/programming and act simply as a taping machine.
The Model 1050 can be used to incorporate additional inspection or marking steps past those available with the handler itself. The taping machine can incorporate its own laser marker, label applicator, or vision inspection system for use after the parts have been placed in the carrier tape and before sealing.
The Taper is designed for 8 to 72 mm tapes, PSA or Thermal Seal.
