Mks type 1179A mass flow controller H2 gas 500 sccm mfc

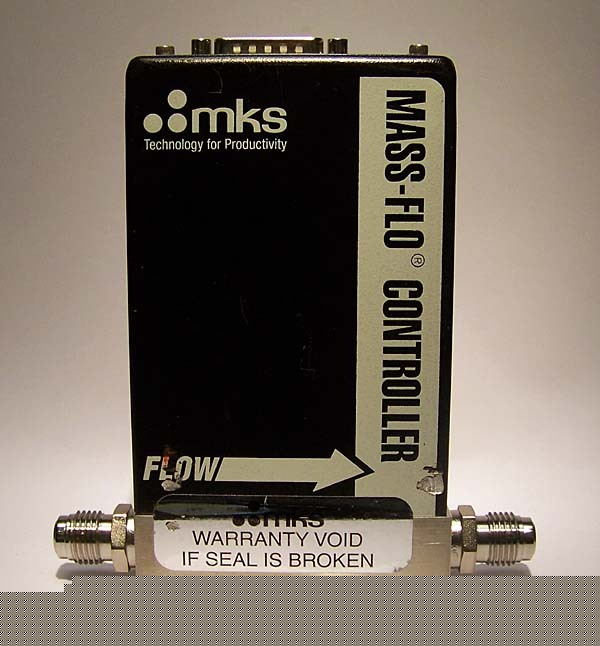

MKS Type 1179A Mass Flow Controller H2 Gas 500 SCCM MFC
(1) Used MKS Type 1179A Mass Flow Controller [Gas -H2/Range - 500sccm (Model#:1179A-26043 {1179A52CR1BV-S})]
* Full Scale Ranges (N2 equivalent): 500 SCCM
* Maximum Inlet Pressure: 150 psig
* Normal Operating Pressure Differential(with atmospheric pressure at the MFC outlet): 10 to 5000 sccm 10 to 40 psid
* Accuracy (including non-linearity, hysteresis, and nonrepeatability referenced to 760 mmHg and 0 C)(Calibration Gas): Analog 1.0% of F.S., Digital 1.0% of Reading; 20-100% of F.S. 0.2% F.S. , < 20% of F.S.
* Repeatability: 0.2% of F.S.
* Warm-up Time(to within 0.2% of F.S. of steady state performance): < 2 min
* Controller Settling Time (per SEMI Guideline E17-91): < 2 sec
* Pressure Coefficient: <0.02% of Rdg./psi
* Normal Operating Temperature Range: 0 C to 50 C
* Input Voltage Required: Max. at start-up (first 5 sec) 15 VDC ( 5%) @ 200 mA, Typical at steady state 15 VDC ( 5%) @ 100 mA
* Set Point Command Signal 0 to 5 VDC from <20K
* Output Signal: 0 to 5 VDC into >10K
* Connector Types: Analog 9-pin or 15-pin Type D , 20-pin card edge (The 15-pin Type "D" and card edge connectors are electronically compatible with other MKS flow controllers.Consult Applications Engineering at (***)-227-8766 for details.)Digital RS-485, DeviceNet
* Wetted Materials: Standard 316L S.S. VAR (equivalent to 316 S.S. SCQ for semiconductor quality),316 S.S., nickel, Valve Seat Kel-F for <200 sccm, Teflon for >500 sccm configurations
* Leak Integrity: External (scc/sec He) <1 x 10-10, Through closed valve <1.0% of F.S. at 40 psig inlet to atmosphere(To assure no flow-through, a separate positive shut-off valve is recommended.)
* Fittings (compatible with): Swagelok 4 VCR , " Swagelok , surface mount
* Electromagnetic Compatibility: Fully CE Compliant to EMC Directive 2004/108/EC when used with an overall metal braided shielded cable, properly grounded at both ends.
