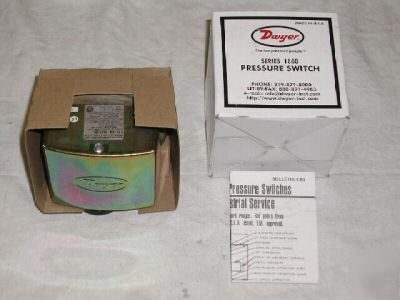

Dwyer 0.5" wc low differential pressure switch #1823-0
Dwyer 0.5" WC Low Differential Pressure Switch #1823-0
* Operating Range: 0.15 to 0.5" W.C.
* Set point adjustment inside the mounting stud permits mounting switch on one side of a wall or panel with adjustment easily accessible on the opposite side.
* Temperature Rating: 180 F (82 C) Max. Temperature
* 15A - 125, 250, 480 VAC
* 1/8 HP, 125 VAC, 1/4 HP, 250 VAC
* Pressure Connections: 1/8" NPT
* Mounting Spud: 1/2" Pipe Thread
* Installation: Diaphragm Vertical
* U.L. and C.S.A. Listed, F.M. Approved
