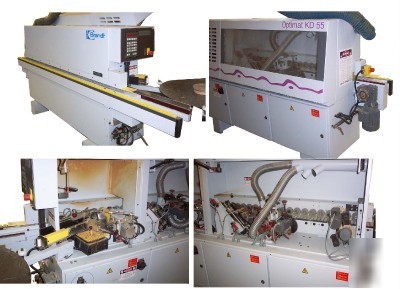

Brandt KD55 kd-55 edgebander edge bander
Brandt KD55 KD-55 Edgebander edge bander
Top and bottom buffing unit.Workpiece support track extendable to 19.5 ( 500mm ).Electronic frequency changer for all trimming motors, which also includes electronic motor braking.Electrical components according to UL/CSA listings.
Edgeband thickness - strips - coiled material
0.4 - 3 mm (0.016" - 1/8")(max. 3 x 45 mm)0.4 - 3 mm (0.016" - 1/8")(max. 3 x 30 mm)(max. 0.8 x 45 mm)
Strip material: 229 mm (9") min
End trim unit - two motors End trim cutting speed Tilting range 0 15 degrees
Flush trimming unit Cutting speed Tilting range 0 15 degrees
Amperage: 16 amps @ 230 volts, 8 amps @ 460 volts.Total power required: 3.8 kw.Electrical connection: 208/230/440/480 volt, 3-phase, 60 Hz.Dust extraction: 100 mm (4"), 600 CFM.Compressed air connection: 0.18 CFM per panel, 6 bar (85 PSI).
