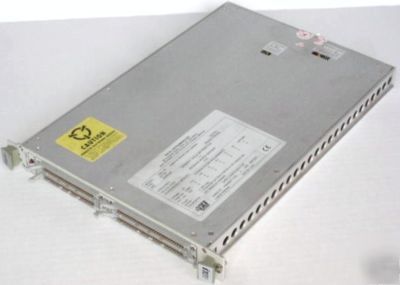

Racal 1260-14C 407164 96-channel digital i/o vxi module
* Model #: 1260-14-C (126014-C) (1260-14C) (126014C)
* Description: Digital I/O (In/Out) (Input/Output) Module Open Collector
* 96 TTL, CMOS or Opencollector Input/Output Channels
* Drives up to 32V and Sinks up to 200mA per channel
* Two-wire Programmable Hand shaking
* Synchronous, Asynchronous and Mixed Operating Modes
Single-slot, C-size, Message-based VXIbus Module
The 1260-14 is programmable in several operating modes and data may be manipulated in either hex, decimal or binary. Memory is available on the 1260 Series Smart Card Module to allow buffered I/O operations. The 1260-14 is also available in TTL or CMOS compatible I/O channels. Each TTL or CMOS I/O channel may be placed in a high impedance, tristate mode.
Racal Instruments 1260-14 Digital I/O Module is supported by 1260 Series Option 01 message-based interface.
* Data Rate: Static to 200kHz (Asynchronous, Register-Based) Static to 800Hz (Synchronous)
* Operating Modes: Asynchronous, Synchronous, Mixed (Synchronous and Asynchronous)
* Input/Output: TTL, CMOS, or Open Collector TTL
* Configuration: I/O lines selected as either input or output on an 8-bit byte basis
* Cooling Requirements: Airflow: 1.2 liters/sec.; Back Pressure: 0.6mm H20
* Power Requirements (Ipm) +5V: 2.38A, (if no internal supplies are used to pull up the outputs) 4.78A with Option 01 installed
* Weight 2.69 lb (1.21 kg) without Option 01 / 2.97 lb (1.34 kg) with Option 01
* Mechanical C-size, Single-slot VXIbus Module
For further information, please visit the online brochure at http:// /pdf/1260-14.pdf
