New pm-1330CNC lathe (purchased 3 months ago)

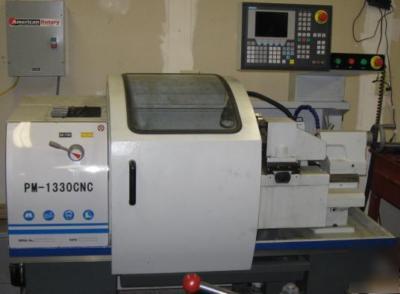

As New PM-1330CNC lathe with 6 tool Turret.
(File photo from vendors website)
(Direct Link to actual vendors site and info.... PM-1330CNC)
(This lathe has "Never" made a cut or chip)
My home and shop is 100% wind/solar powered and this is just to much of a load on my system. So it is going to be replaced with a MicroKinetics 12x36 CNC lathe that will operate on straight 220 VAC. (lot smaller load than running just the 10hp phase converter).
The lathe does have a "Dented" cover (for the turret motor) from not Machine referencing it in the correct order, and ran the cover into the tail stock.
The unit comes with all manuals that it originally came with, along with additional manuals that were printed from .pdf files and put in 3-ring binders.
Also included is a 10hp Rotary Phase Converter (Purchased NEW just for use with this lathe).
This is being sold as "Pick-up" only. I will provide assistance on getting it up on dollies and moved out the rear door of the shop. From there, it is "All yours" to get loaded and hauled to your shop.
Axis and Spindle for More Production and Long Part Runs
CNC Programmable Spindle Speeds from 80 to 2000 rpm.
Safety Chip Guard Front Door
Programmable Automatic 6 Position Turret
Full Ballscrew Enclosure to Protect from Chips and Dirt
Easy to Learn Conversational Programming canned cycles for boring, turning, drilling, threading, and
Canned Cycles for Easy Programming - such as: Profiling, Material Removal, Roughing and Finishing,
Inside & Outside Threading, Line, Arc, Drilling and Floating Tapping, Cut-off, Grooving, Radius,
G Code and M Code Programming
Tool Length & Radius Compensation
Spindle is Balanced, Hardened and Precision Ground
Spindle is Supported by High Precision Tapered Roller Bearings
All Gears and Shafts are Hardened and Precision Ground
Guideways Induction Hardened and Precision Ground
Automatic Lubrication System for Ballscrews and Guideways
Constant Lubrication in Headstock and Carriage
Max. Length of Workpiece 30
Max. Practical Cutting Length 23
Max. Swing over Cross Slide 5-1/2
Max. Turning Diameter over Bed 13
Spindle Bore / Mount 1-1/2 / D1-4 Camlock
Taper of Spindle Center M.T.# 5
Spindle Speeds, CNC Programmable 80 2000 rpm
Diameter of Tailstock Quill 1-7/8
Max. Travel of Tailstock Quill (manual) 4-3/4
Taper of Tailstock Quill Center M.T. # 3
Auto Turret Tool Post 6 positions, more tools possible with offsets and gang tooling setup
Max. Tool Size for Auto Turret 5/8 x 5/8
Main Motor 4 HP, 220V , 3 phase Programmable Variable Speed
Coolant Pump 1/8 HP , 220V, 3 phase
Auto Lubrication 1/16 HP , 220V 3 phase
Net Weight, approx. 1,950LBS
Overall Dimensions, LxWxH 78 x 46 x 82
6 Manual 3-Jaw Chuck with Set Reversible Jaws
Programmable Automatic 6 Position Turret for More Tool Capacity
Automatic Lubrication System
