New 20' 4 wires 20 awg stranded alpha cable extra guard

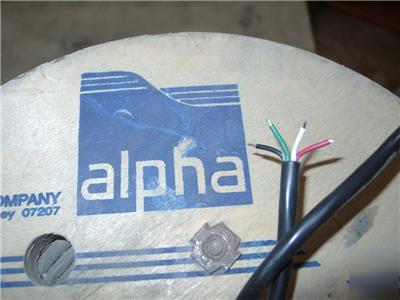

20' 20 AWG 4 wires stranded Alpha Cable EXTRA GUARD new
Specify XTRA-GUARD 4 for unmatched cable performance in both high and low
temperature cable applications from -60oC to 125oC. Has outstanding resistance
to oils, fuels, solvents, water, low HCL content for safety and passes the 210,000
BTU Flame test. Features fully color-coded TPE (Thermoplastic Elastomer)
insulated conductors and a TPE jacket in both 300 and 600 Volt UL cable styles.
XTRA-GUARD is also UL rated Type TC 600 Volt and Type PLTC 300 Volt for
cable tray applications and is Pennsylvania Bureau Deep Mine Safety Approved
(P-MWMS-1-85) for mine-wide monitoring systems.
Cross section - stranded 20 AWG (7 strands 28 AWG)
Conductor Matereal - Copper, Tinned
Wires colors - black, red, green, white
External insulator color - black
Label on the cable - P/N 5054C 4C / 20 AWG XTRA GUARD 1 75C (UL) TYPE CM or AWM 2464 - LL701846 CSA TYPE CMG FT4 LOT # 064163
See description in the following link:
http:// /secondary/manu-prod_pdf/A/Alpha%20Wire%20Corporation.pdf
